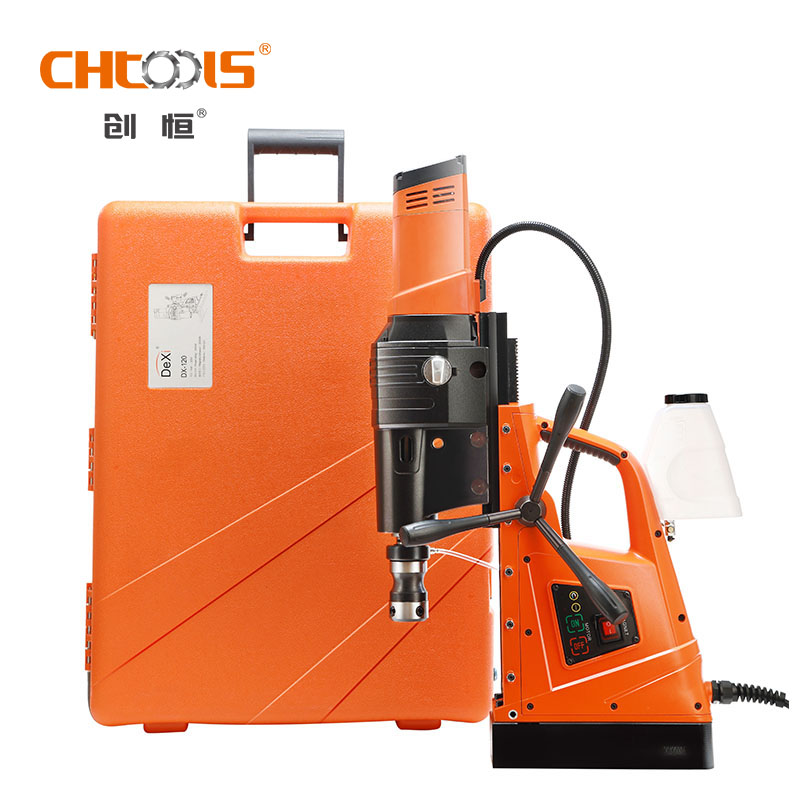

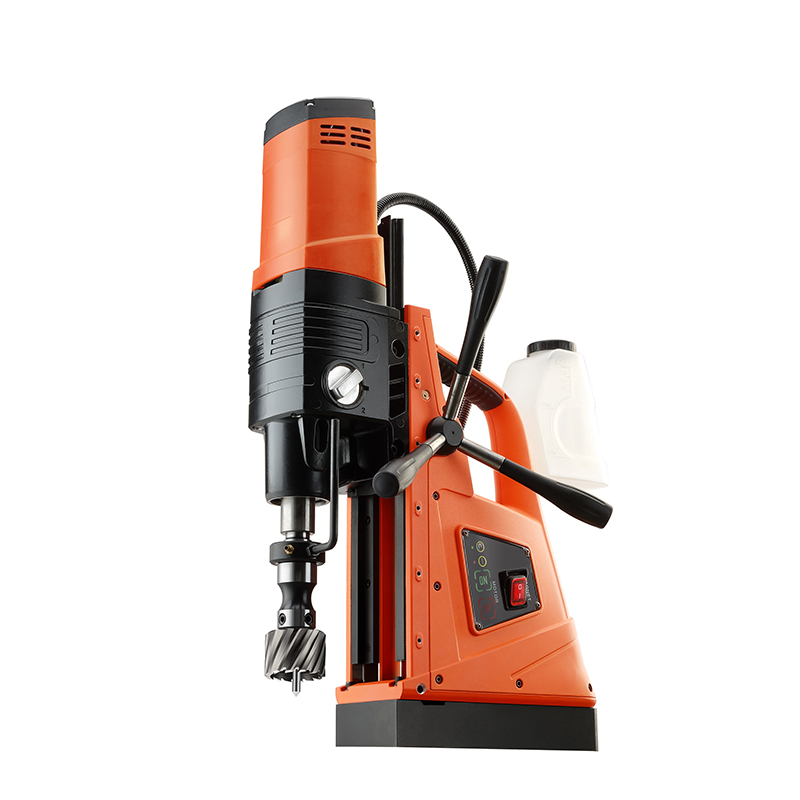

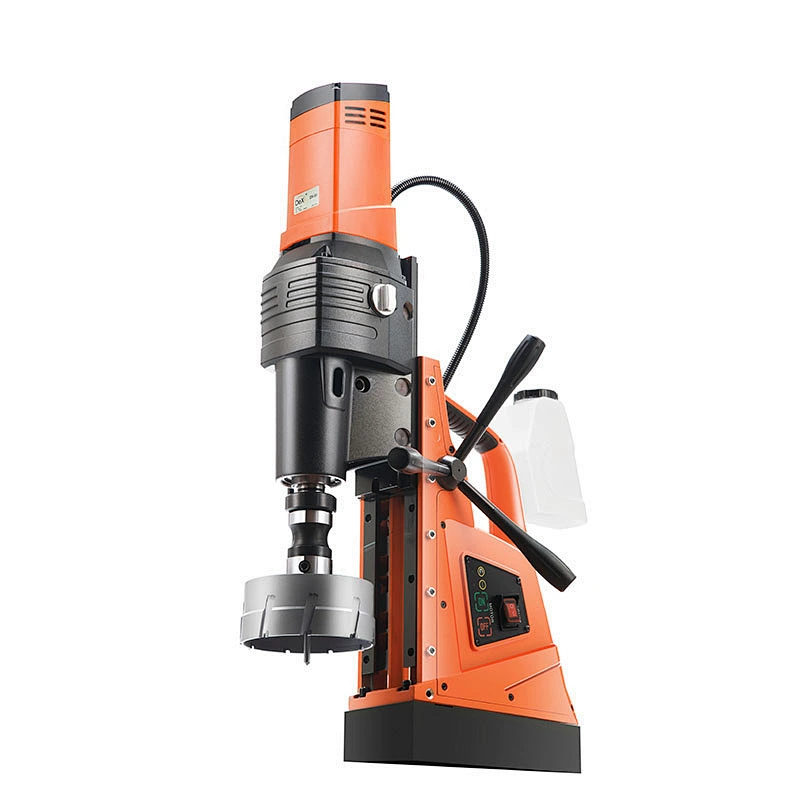

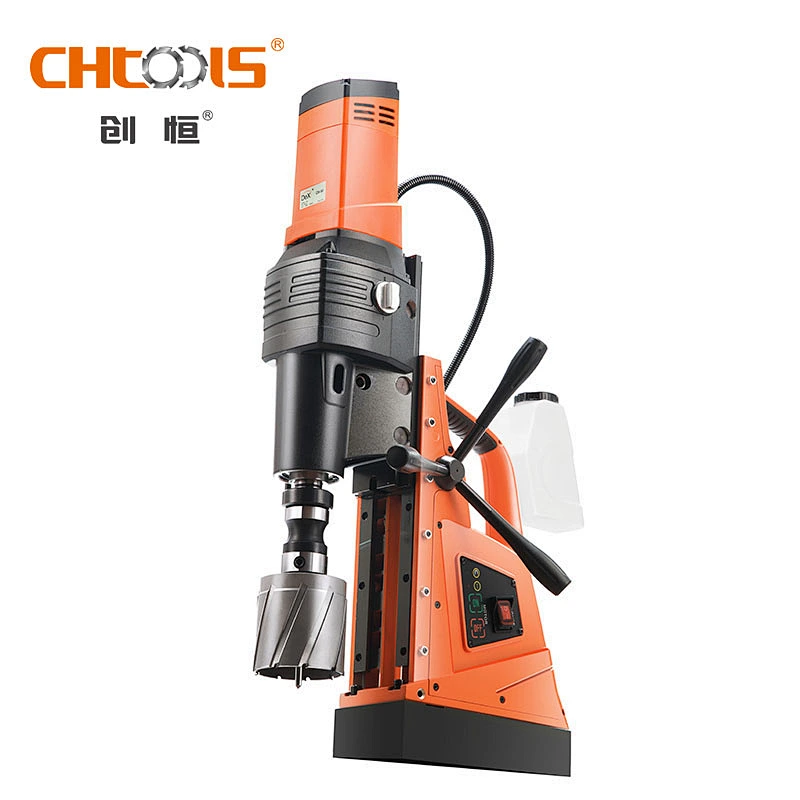

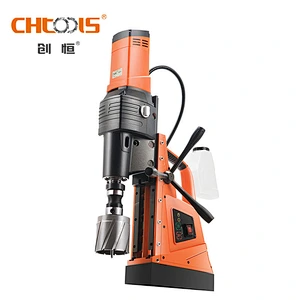

China Factory Direct Sale High Power Magnetic Drill

China Factory Direct Sale High Power Magnetic Drill

Model NO.: DX-120

Quantity:

Product Description

Product name:chinese magnetic drill
Motor rated power:2500W
Load speed:80/125/175/300rpm
Tool holder:MT4
Magnetic adhesion:20000N
The max cutter capacity:120mm(4-3/4")
The max cutting depth:100mm( 4")
The max diameter of twist drill:42mm(1-11/16")
Condition:New
type:Magnetic drilling machine
CNC or Not:Normal
Warranty:1 Year
After-sales Service Provided:Online support
After-sales Service Provided:Video technical support
Key Selling Points:Energy saving
After Warranty Service:Video technical support
Local Service Location:None
Showroom Location:None
Applicable Industries:Building Material Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Machinery Repair Shops
Applicable Industries:Home Use
Applicable Industries:Retail
Applicable Industries:Construction works
Marketing Type:New Product 2019
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Warranty of core components:3 months
Core Components:Motor
Place of Origin:CN;ZHE
Max. Drilling Dia. (mm):120mm(4-3/4")
Range of Spindle Speed(r.p.m):80 - 300 r.p.m
Drilling Speed:80/125/175/300rpm
Brand Name:CHTOOLS
Model Number:DX-120
Voltage:220V
Dimension(L*W*H):522mm*248mm*689mm
Power (kW):2.5
Weight (KG):36.5

Products Description

Product Type	DX-120
Motor rated power	2500W
Load speed	80/125/175/300rpm
Tool holder	MT4
Magnetic adhesion	20000N
The max cutter capacity	120mm (4-3/4”)
The max cutting depth	100mm( 4")
The max diameter of twist drill	42mm ( 1-11/16")
The min cutter depth	15mm
Stroke	220mm
Motor can adjust the height to	60mm
Magnetic drill machine dimension	440250580mm
Magnetic base size	28011556.5mm
Countersunk drilling	10-80mm
Total weight	48KG

1	Split type machine body, in order to ensure sealing, there have a sealing groove design between body and cover.
2	The control panel is designed with the combination of mechanical ship switch and micro film switch.
3	Rigidity Design of DX-120 Magnetic drill machine: (1) 2500W high-power motor to meet high-feed drilling condition. (2) 20000N magnetic base suction, higher than most same model in the market. (3) High tooth ratio gear transmission design, spindle output torque up to 170Nm. (4) Adopt MT4 main shaft, can bear more torque.

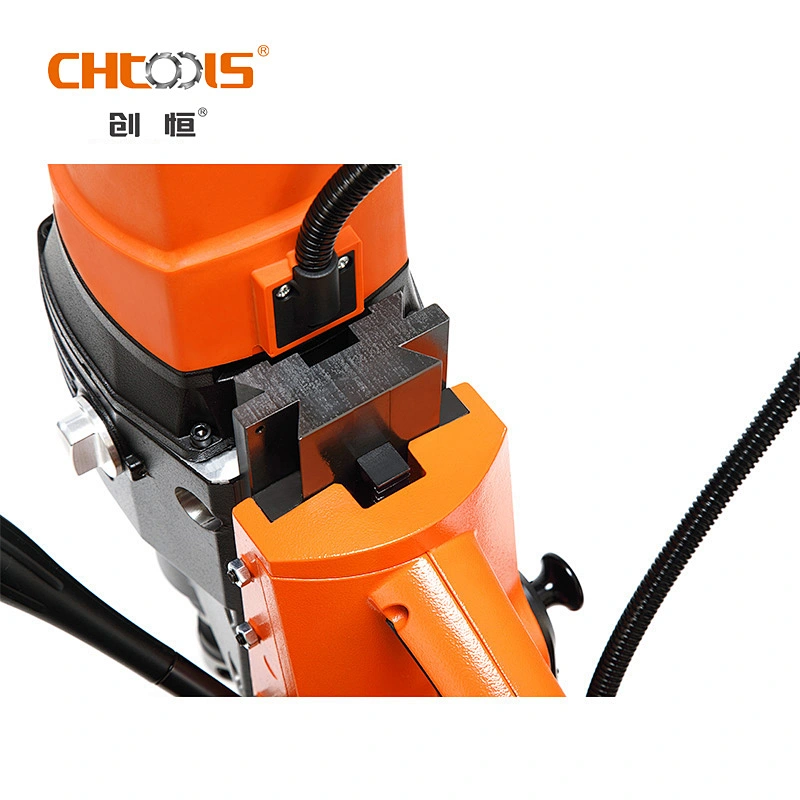

4	Double dovetail design, economic and practical.
5	Elastic adjustment function of guide rail, make the force more uniform on cutting tool when drilling.
6	Gear box cooling pipe perforation design, to meet customer requirements for different arbor, different habits of use.
7	The enclosed and guided structure of air outlet to reduce lateral air flow at front operating position and handle.

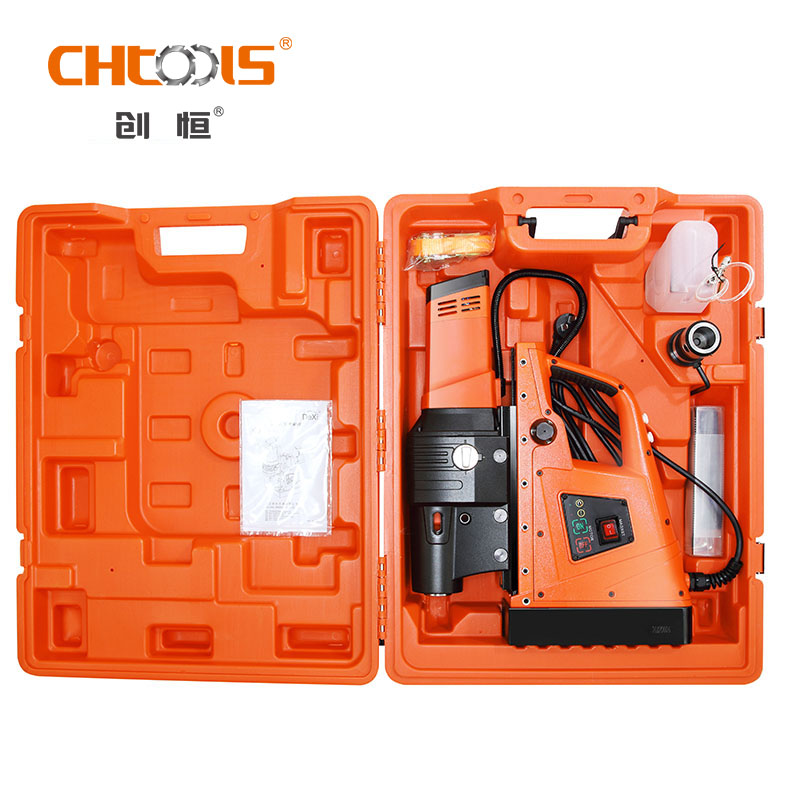

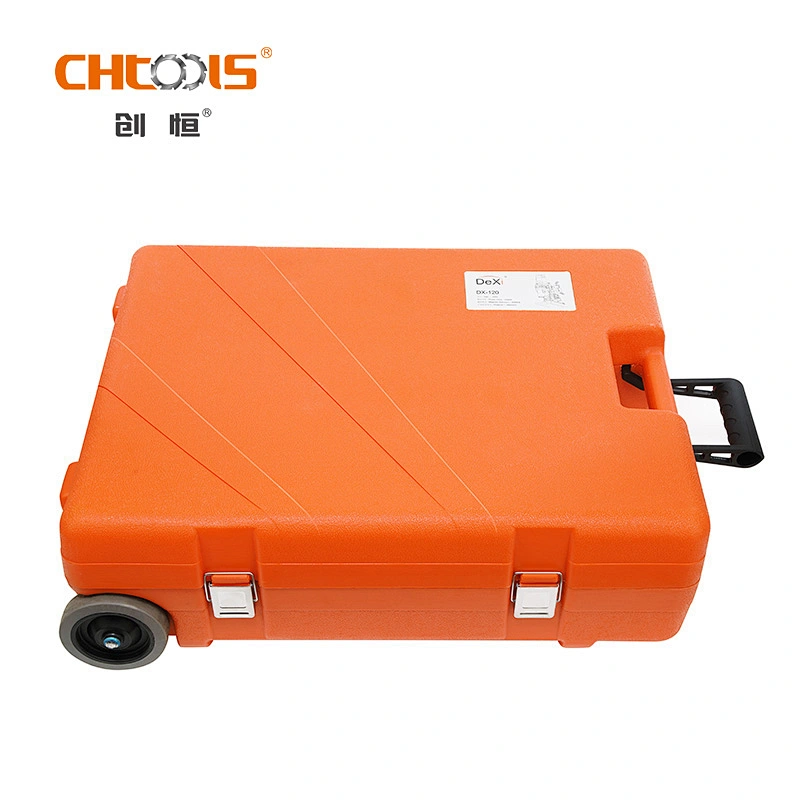

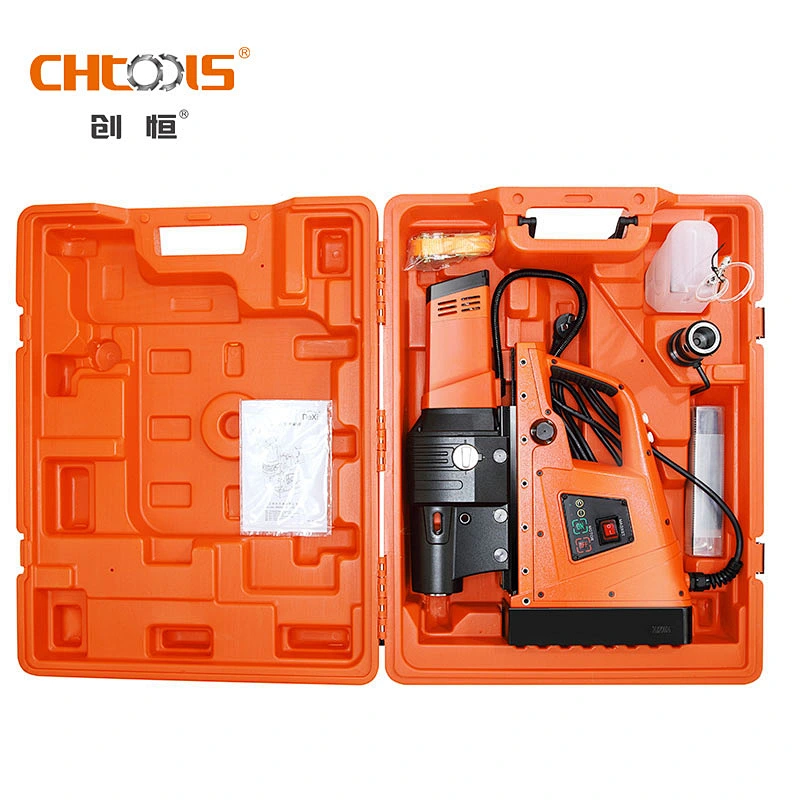

Product packaging

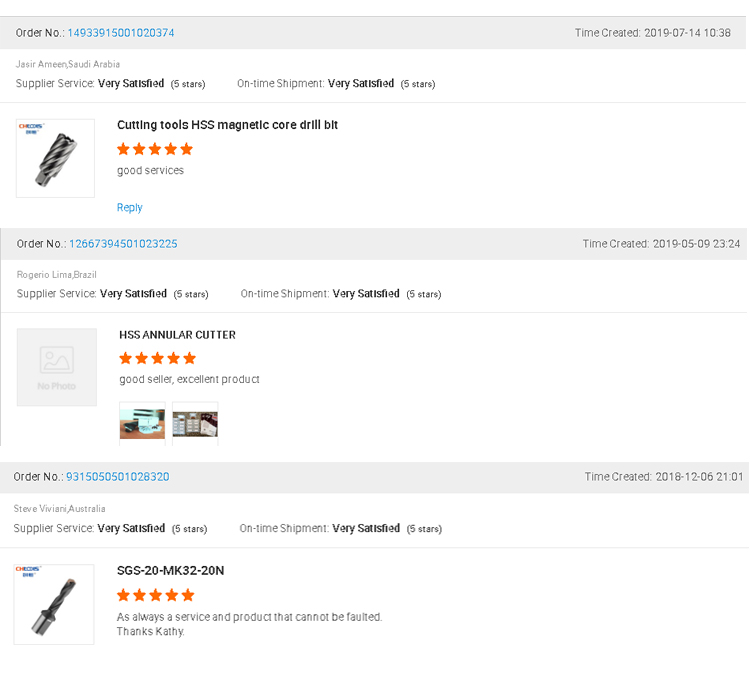

Comment & FAQ

FAQ：

What do you do?

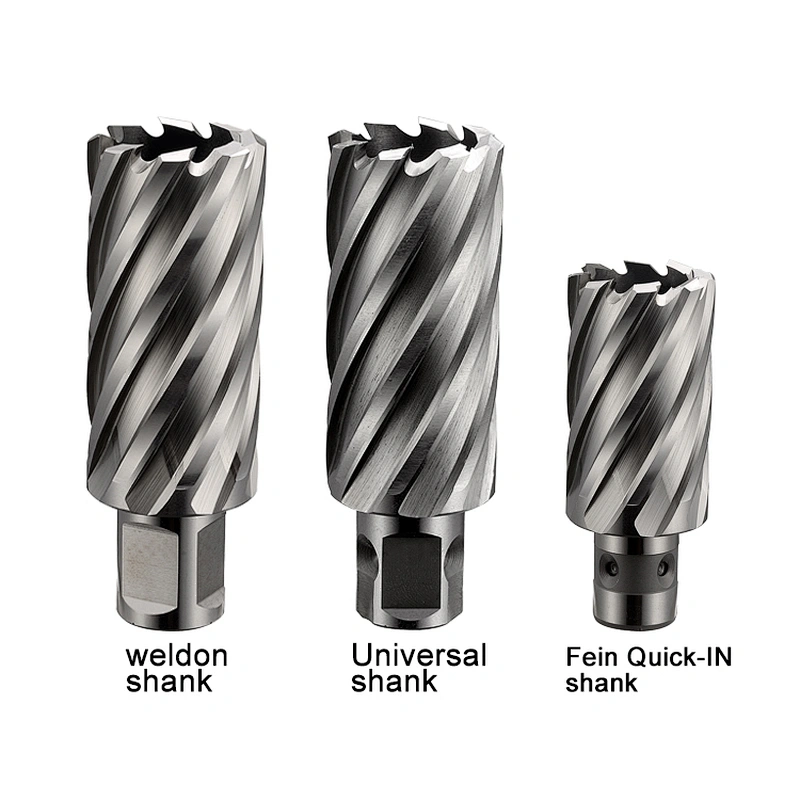

A: Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.

Can you do OEM for us?

A: OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.

Can you help us to do some change about your product?

A: Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.

Can I get a sample?

A: Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.

Are you a factory or trading company?

A: We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.

Where is your company location?

A: We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing, Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.

More products

Company Profile

Zhejiang Xinxing Tools Co., Ltd. established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance.

Our products include: Annular cutter, rail cutter, hole saw, spade drill, speed drill, step drill, countersink, magnetic drill machine, deep hole drill, diamond drilling bit, etc.

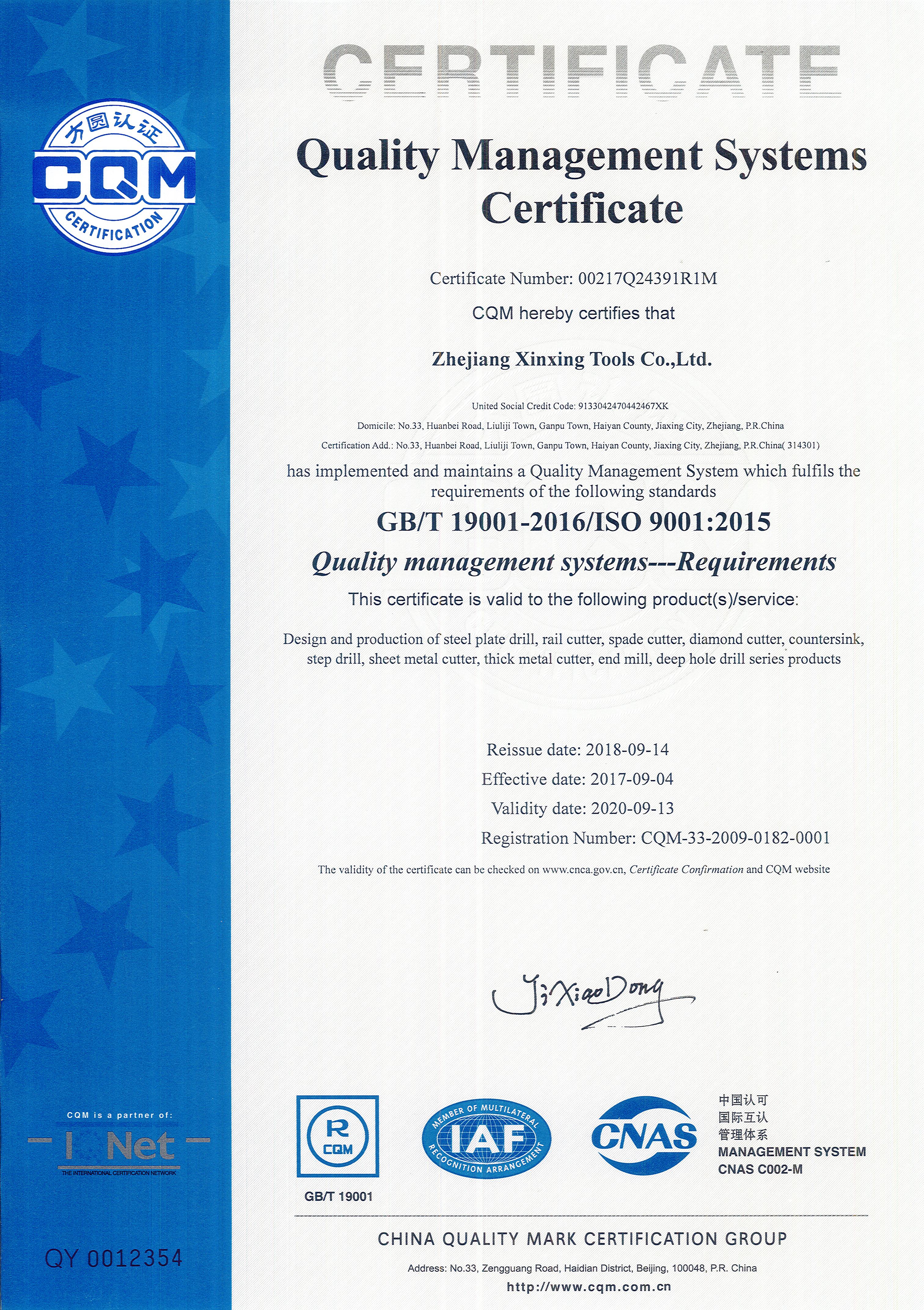

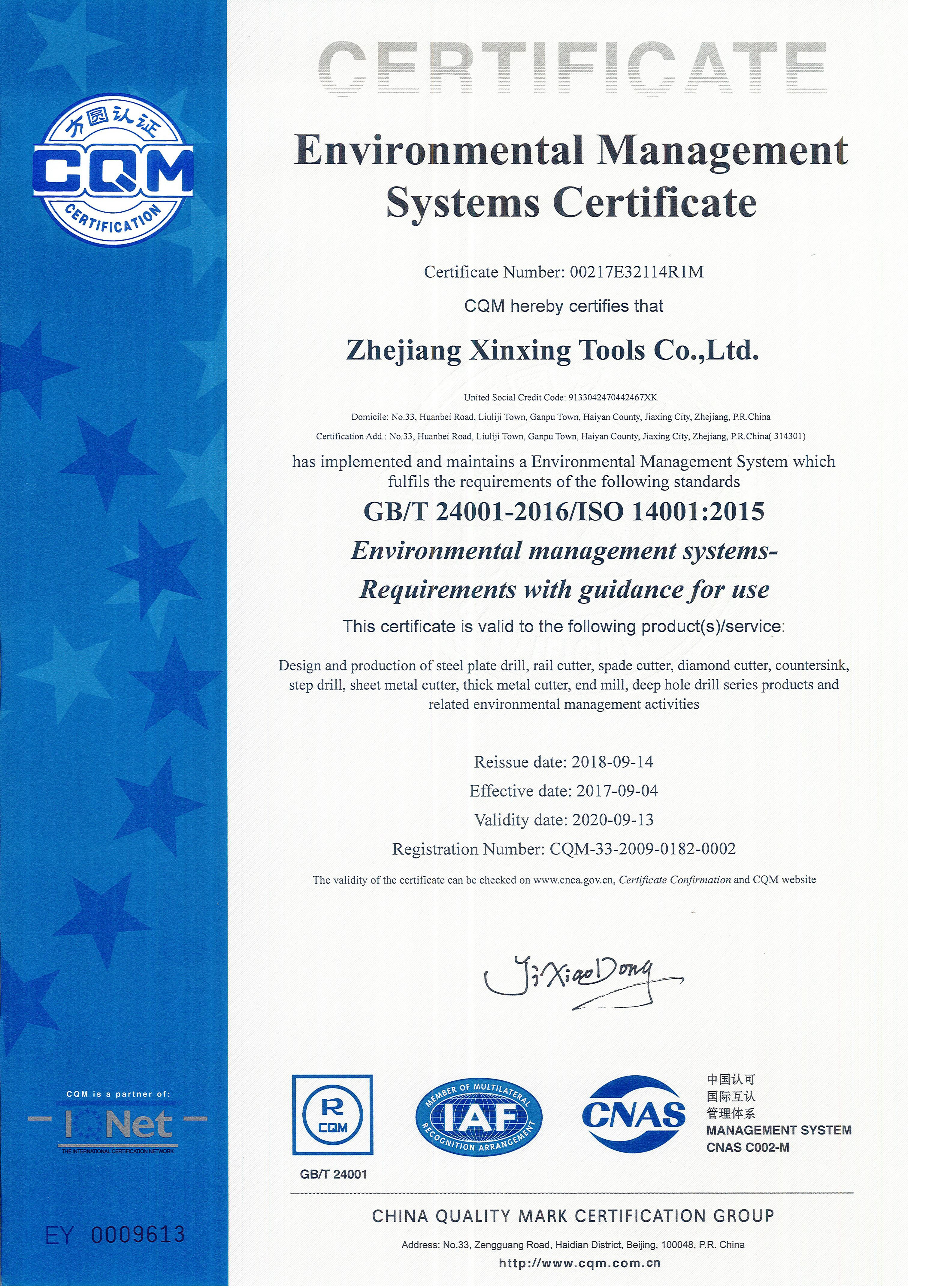

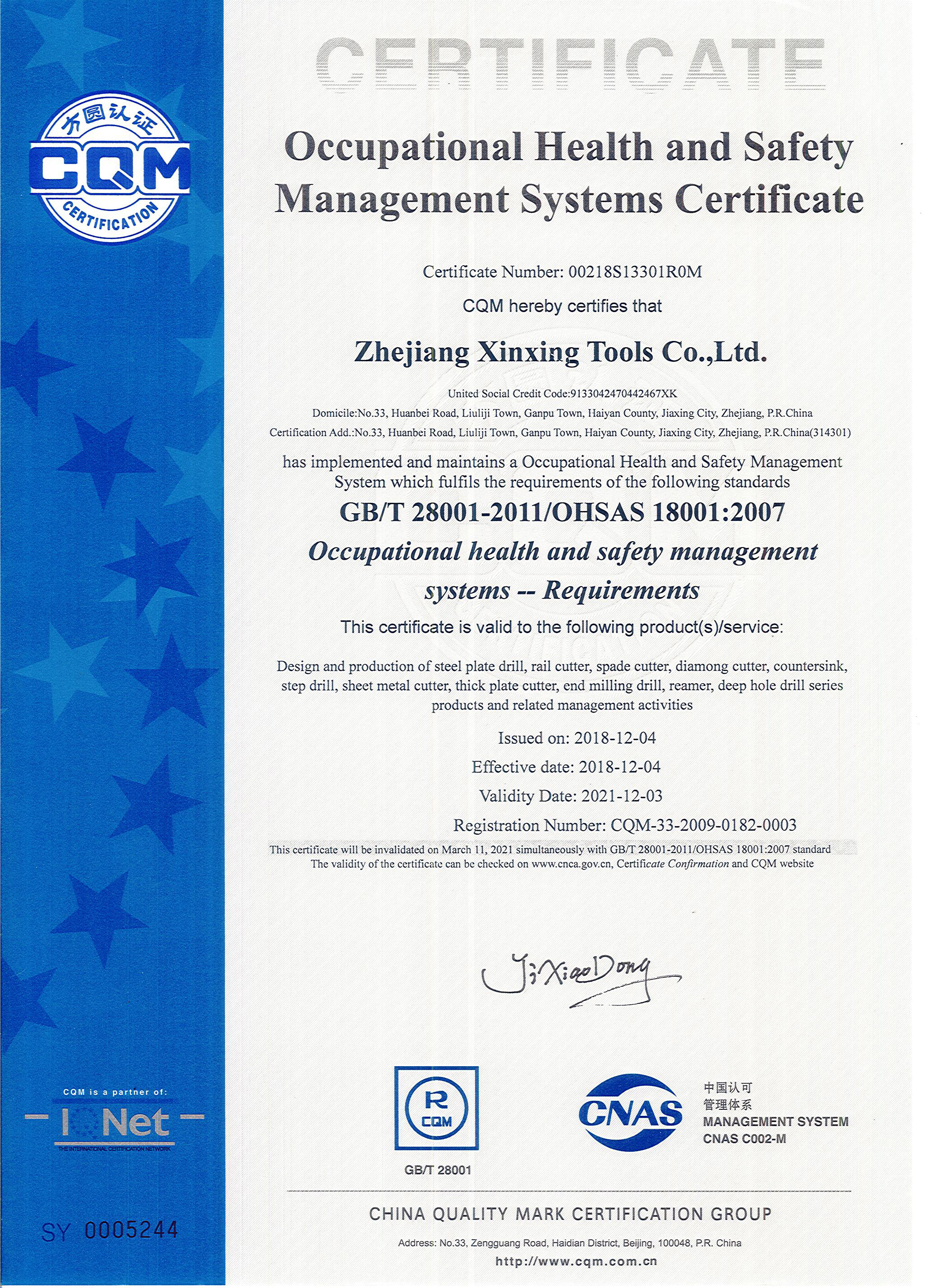

We concentrate on manufacturing high-quality cutting tools, normalize ISO9001:2015 quality control system under operation strictly, and ensure unified high standard quality requirements.

We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory.

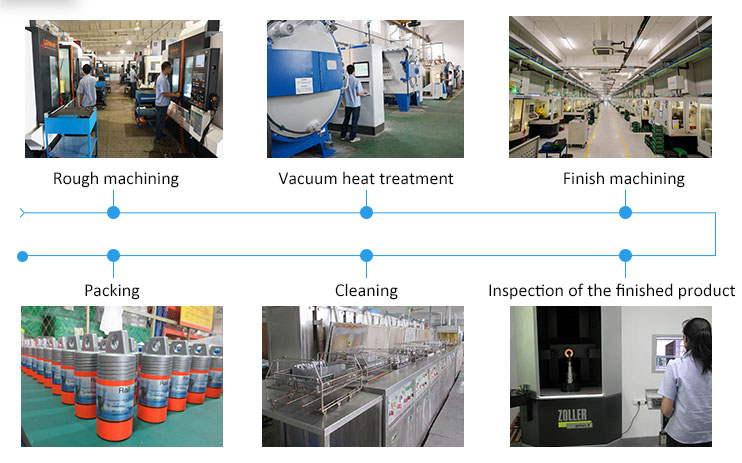

Production process
