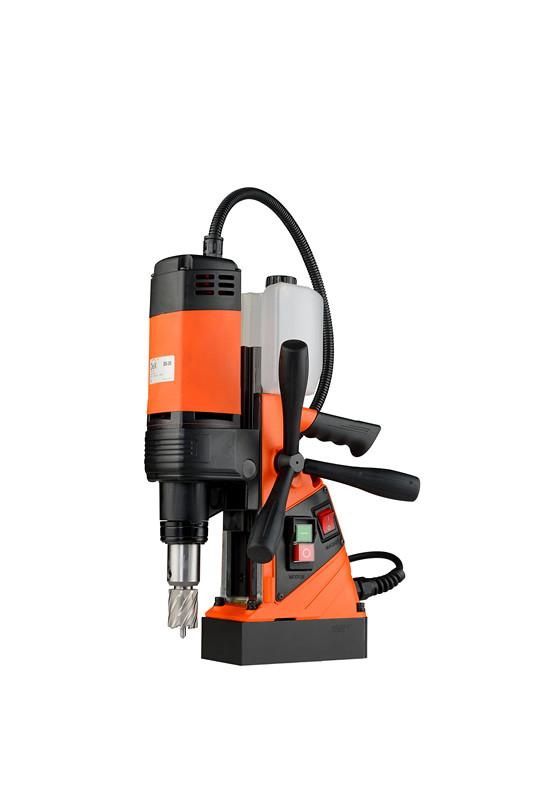

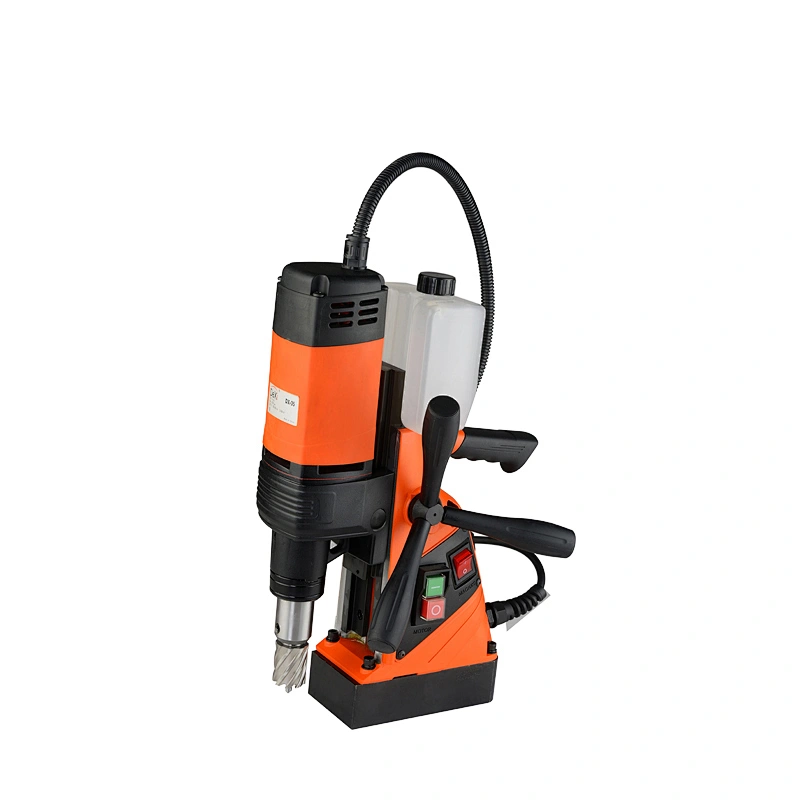

DX-35 annular cutter electric magnetic drill press

DX-35 annular cutter electric magnetic drill press

Model NO.: DX-35

Quantity:

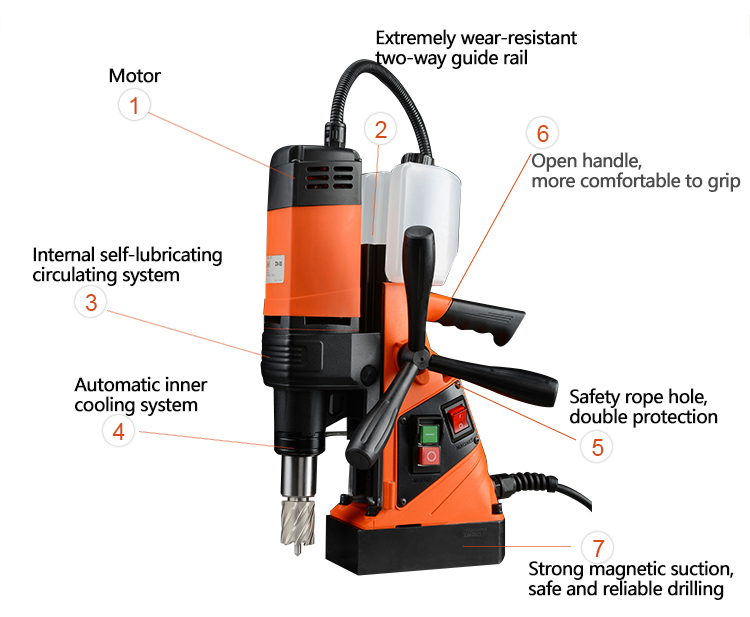

Product Description

Product name:electric magnetic drill press
Motor rated power:1100W
Load Speed:450rpm
Tool holder:19.05 ( 3/4")
Magnetic adhesion:10000N
The max cutter capacity:35mm ( 1-3/8")
The max cutting depth:50mm ( 2")
The max diameter of twist drill:13mm ( 1/2")
The min cutter depth:10mm
Stroke:120mm
Condition:New
type:Drilling & Milling Machine
CNC or Not:Normal
Warranty:3 months
After-sales Service Provided:Online support
After-sales Service Provided:Video technical support
Key Selling Points:Energy saving
After Warranty Service:Video technical support
Local Service Location:None
Showroom Location:None
Marketing Type:Hot Product 2019
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:3 months
Core Components:Motor
Place of Origin:CN;ZHE
Max. Drilling Dia. (mm):35mm
Range of Spindle Speed(r.p.m):450 - 700 r.p.m
Drilling Speed:450rpm
Brand Name:CHTOOLS
Model Number:DX-35
Voltage:220V
Dimension(L*W*H):55*22*45cm
Certification:CE
Power (kW):1.1
Weight (KG):15.4
Applicable Industries:Building Material Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Machinery Repair Shops
Applicable Industries:Home Use
Applicable Industries:Retail
Applicable Industries:Energy & Mining
Applicable Industries:Steel structure engineering

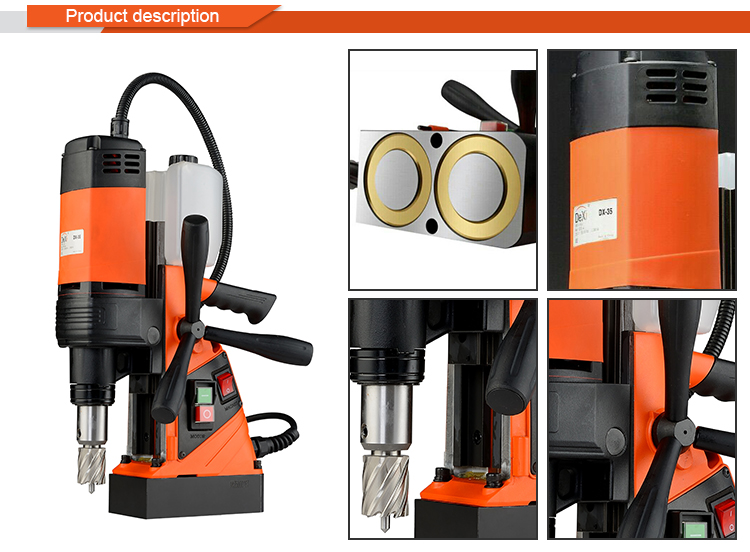

Products Description

Product Type	DX-35
Stroke	120mm
Magnetic base size	167mm84mm44mm
Input power	1100W
The max cutting depth	50mm (2”)
The max cutter capacity diameter	35mm (1-3/8”)
Motor can adjust the height to	95mm
The max diameter of twist drill	13mm ( 1/2")
The min cutter depth	10mm
Magnetic adhesion	10000N
The type of shank	19.05mm (3/4”)
Total weight	11.0kg
Load speed	450rpm
Countersunk drilling	10-35mm

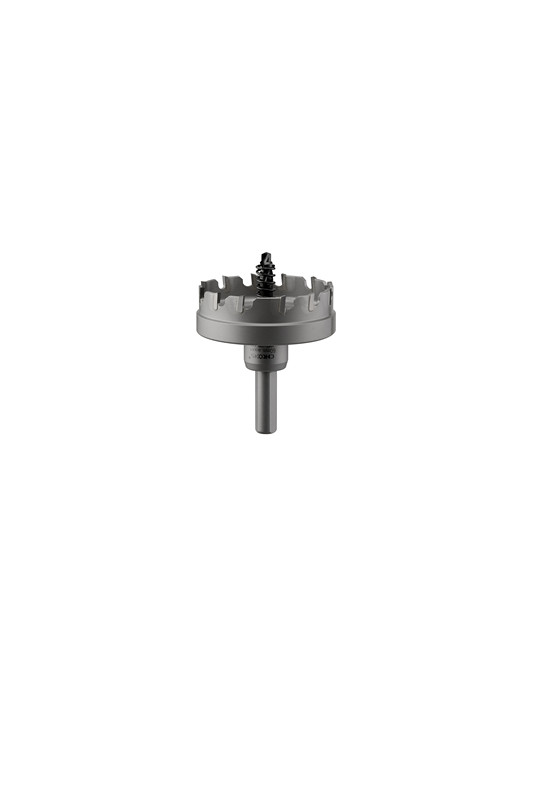

More products

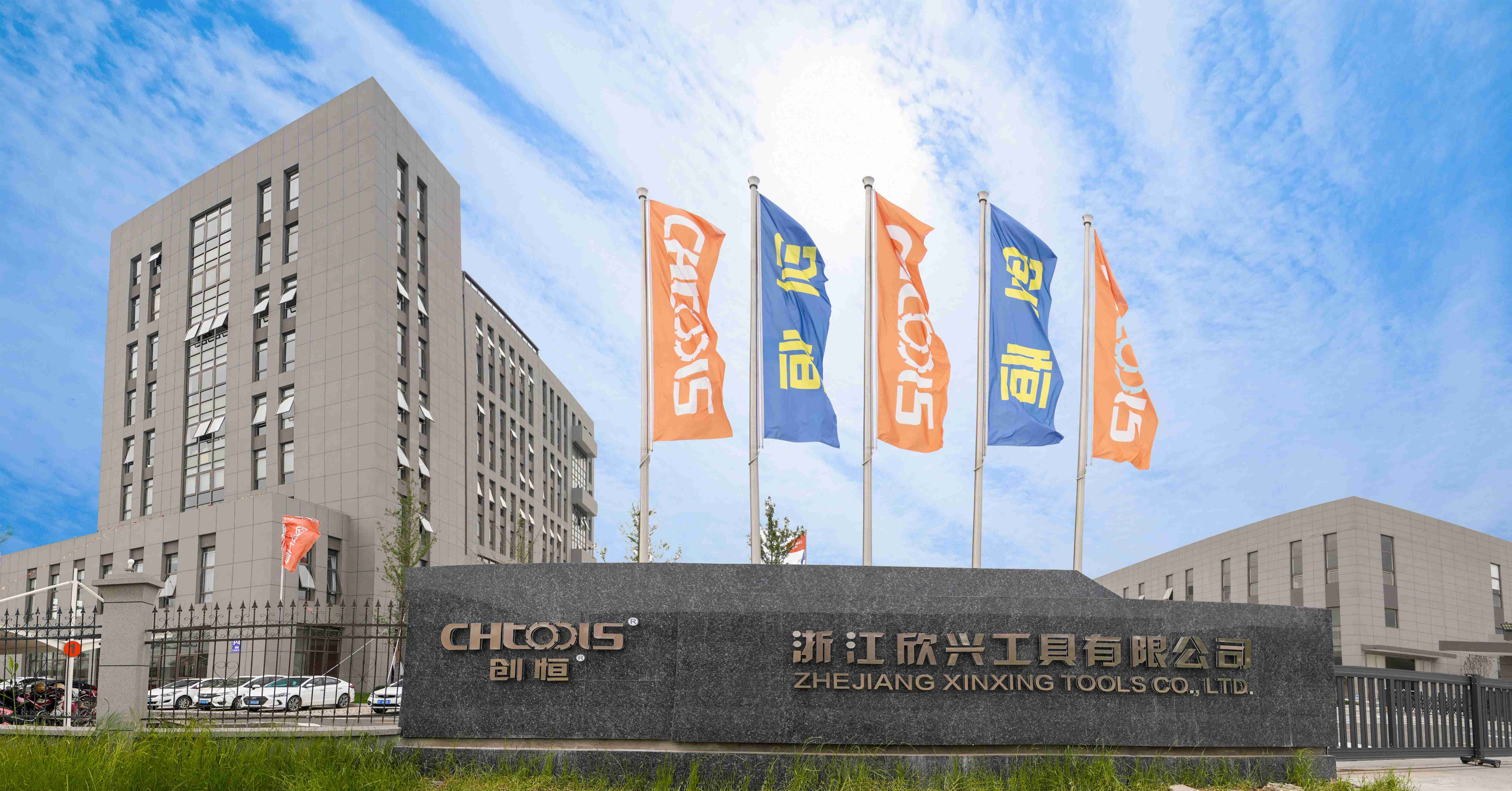

Company Profile

Zhejiang Xinxing Tools Co., Ltd. established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance.

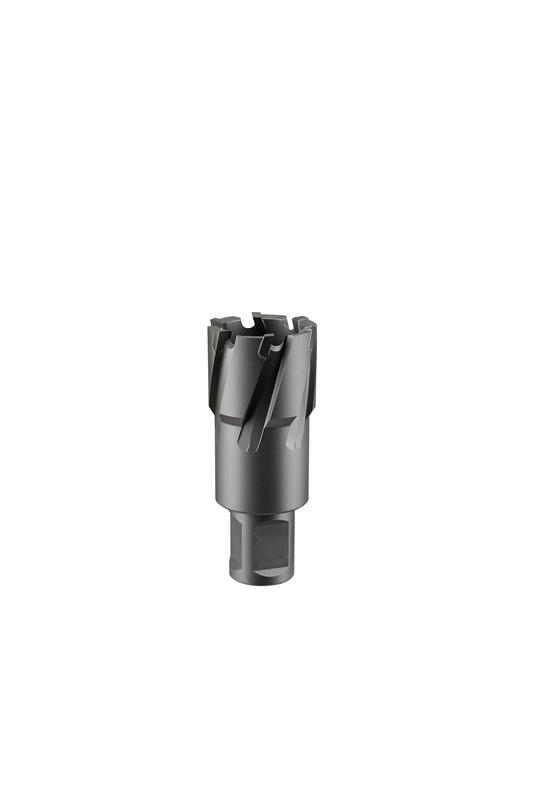

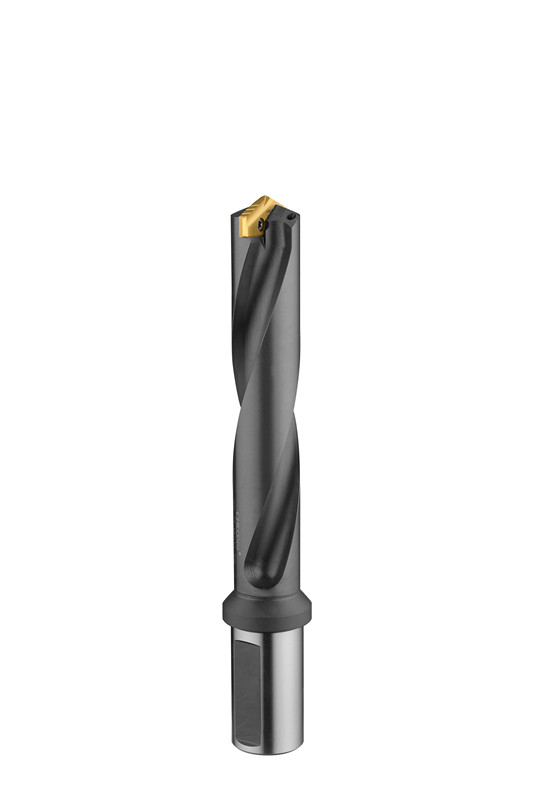

Our products include: Annular cutter, rail cutter, hole saw, spade drill, step drill, countersink, magnetic drill machine, solid carbide cutter, diamond drilling bit, deep hole drill, etc.

We concentrate on manufacturing high-quality cutting tools, normalize ISO9001:2015 quality control system under operation

strictly, and ensure unified high standard quality requirements.

We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool,

heat treatment production line, strong production capacity, and all the production processes are completed by our own factory.

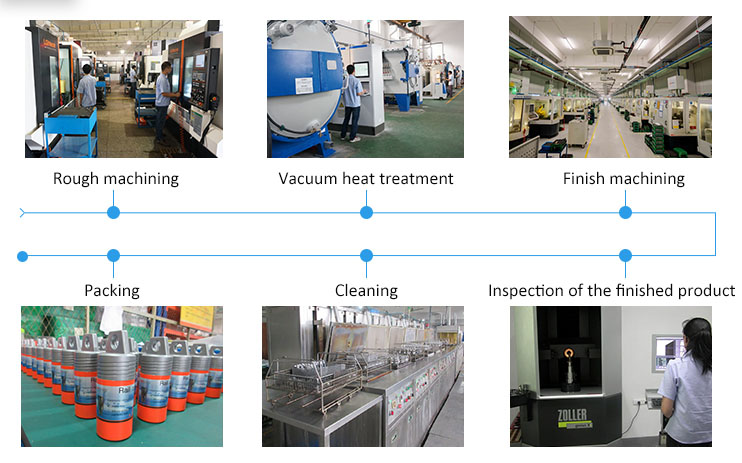

Production process

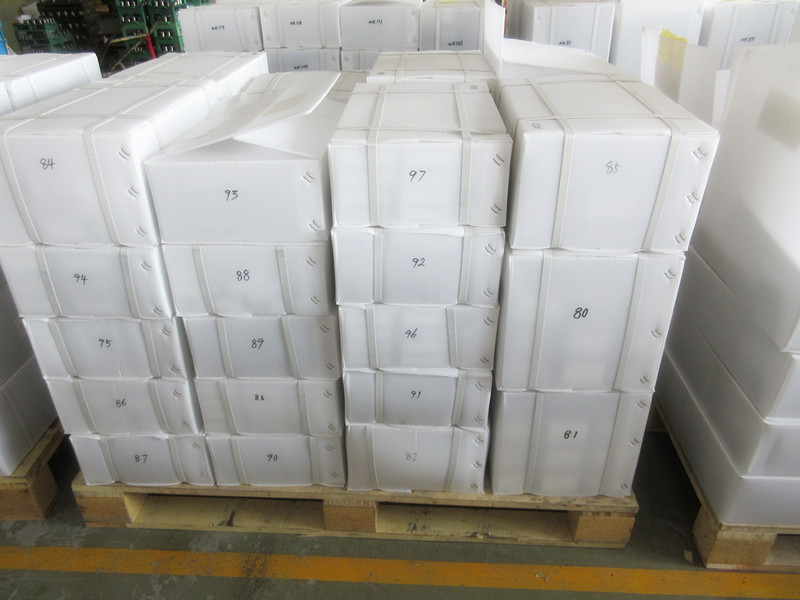

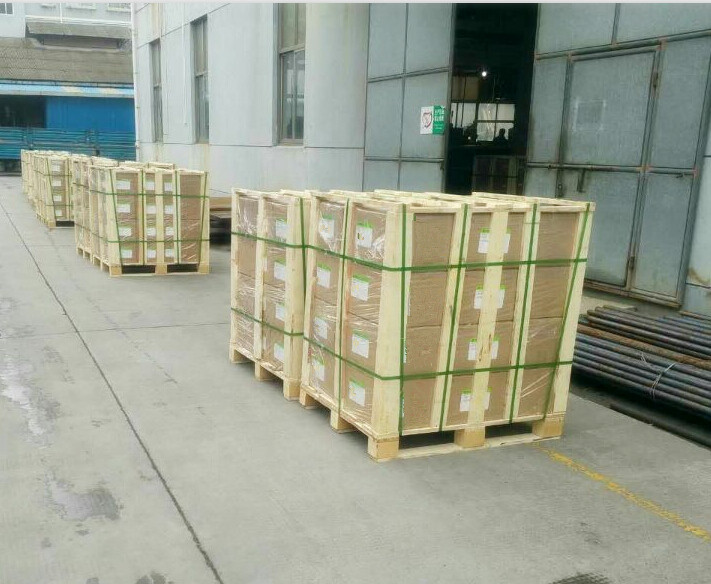

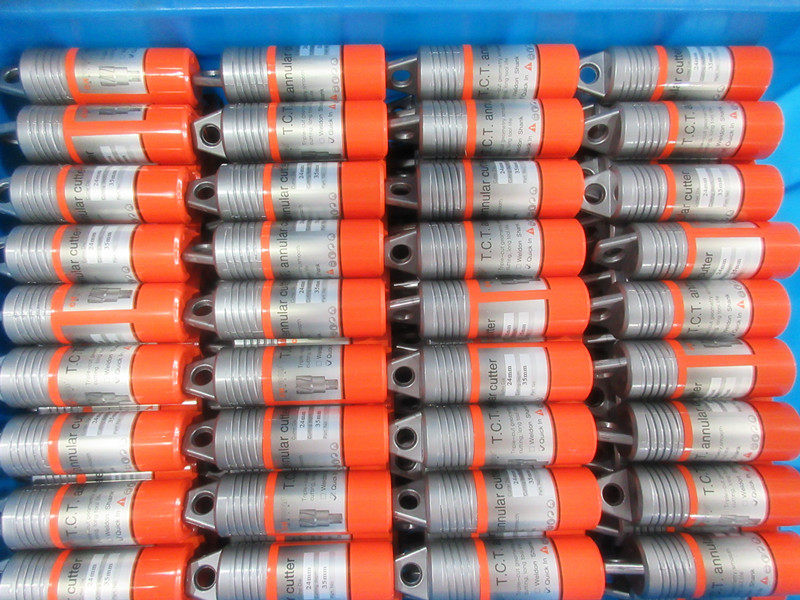

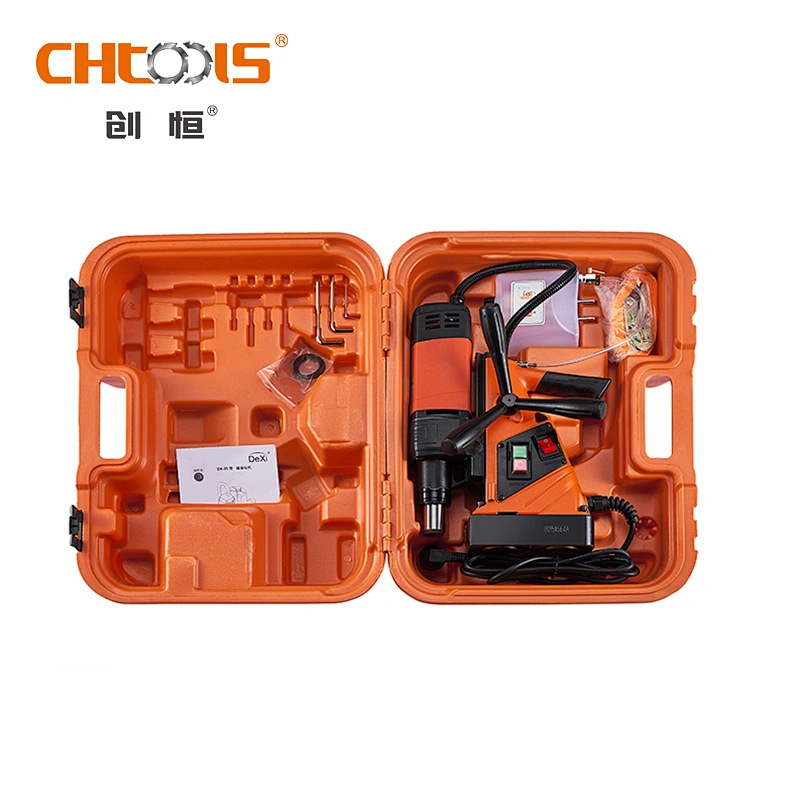

Product packaging

Exhibition

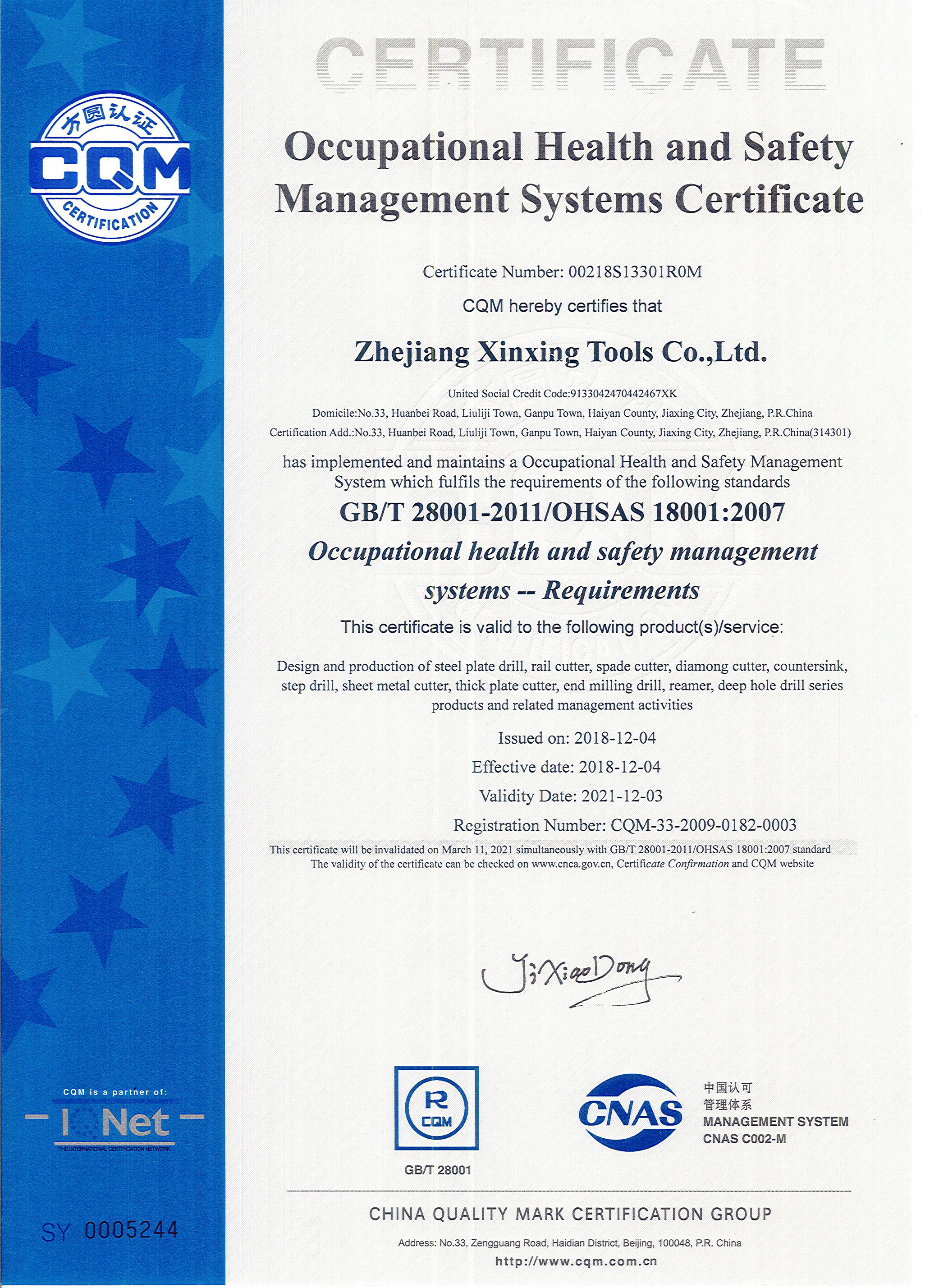

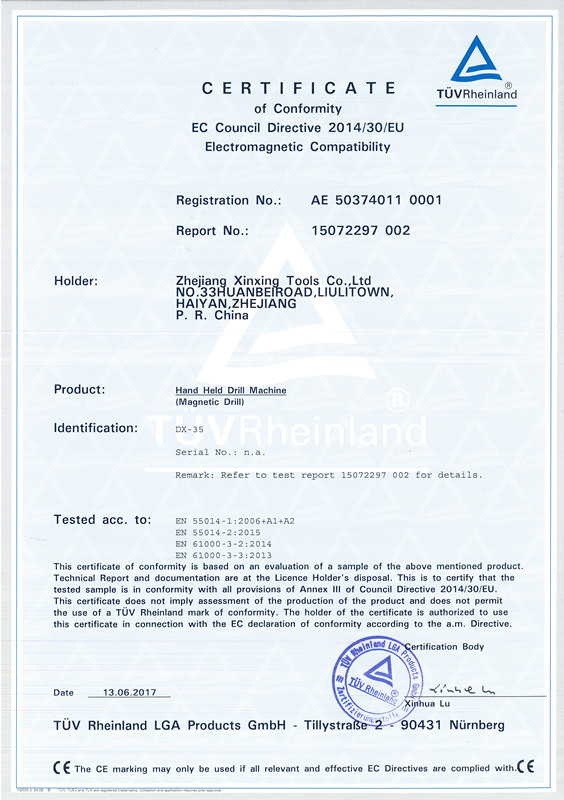

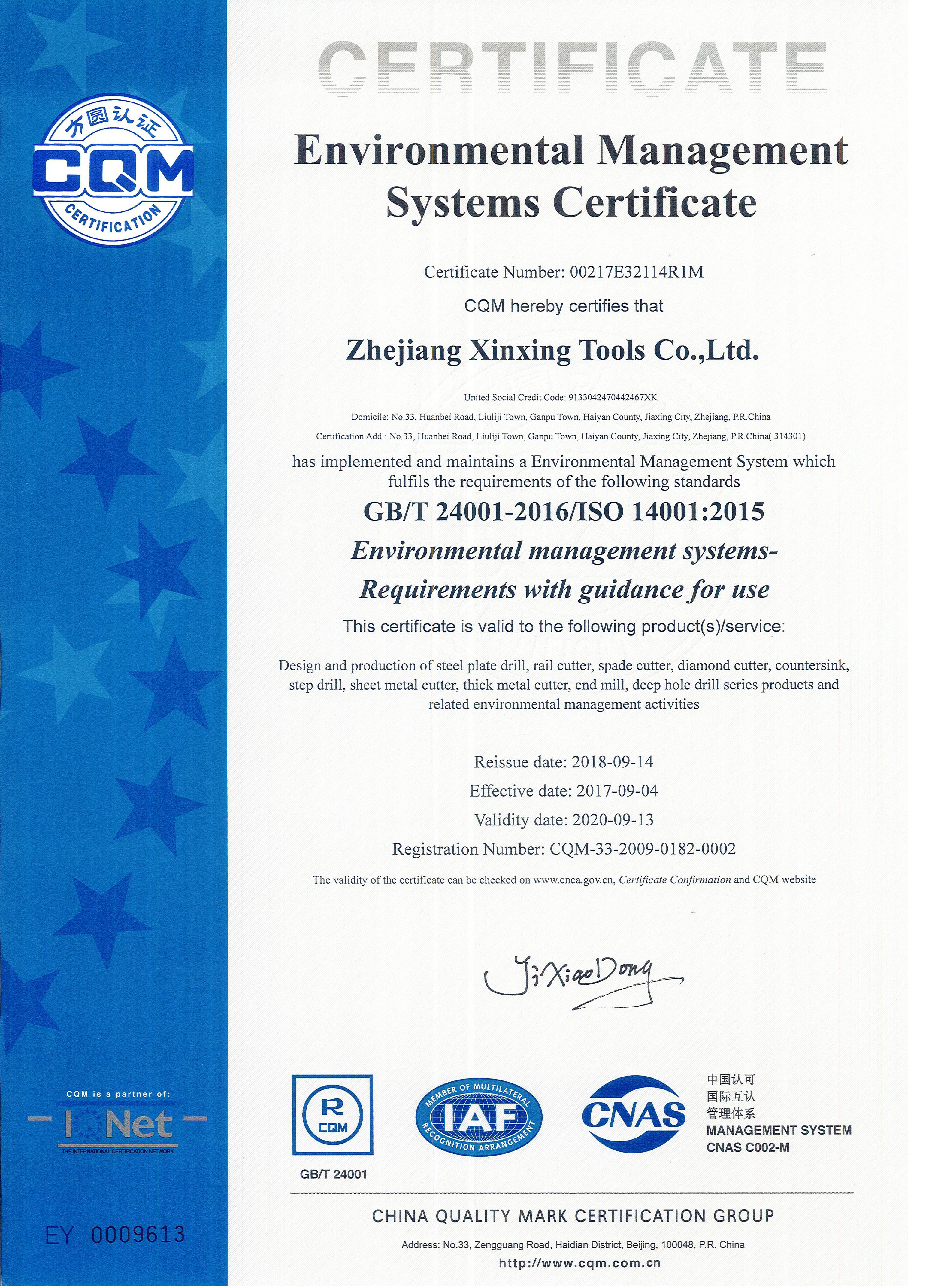

Certifications

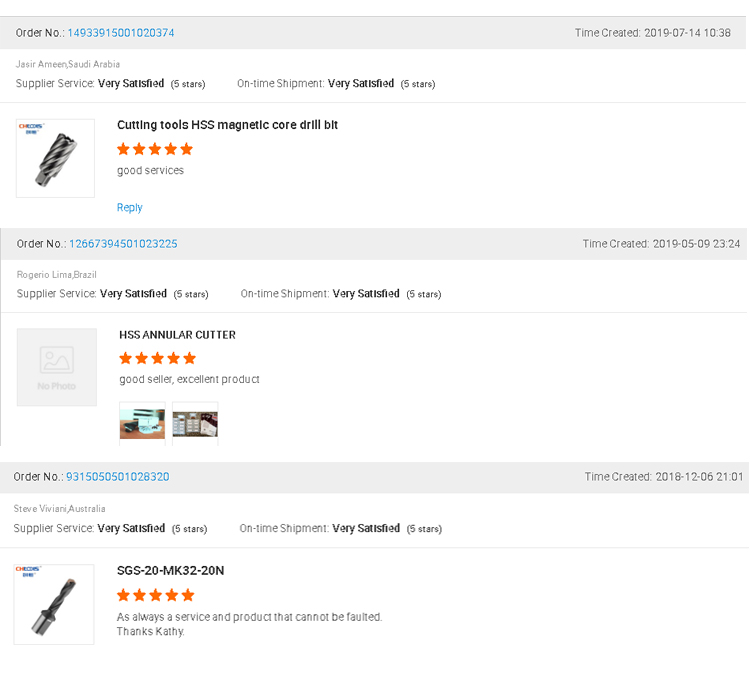

Comment & FAQ

FAQ：

What do you do?

A: Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.

Can you do OEM for us?

A: OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.

Can you help us to do some change about your product?

A: Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.

Can I get a sample?

A: Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.

Are you a factory or trading company?

A: We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.

Where is your company location?

A: We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing, Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.
