Application:

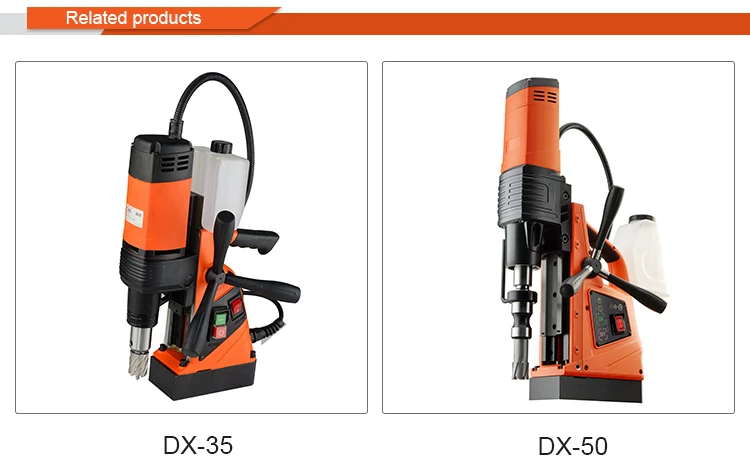

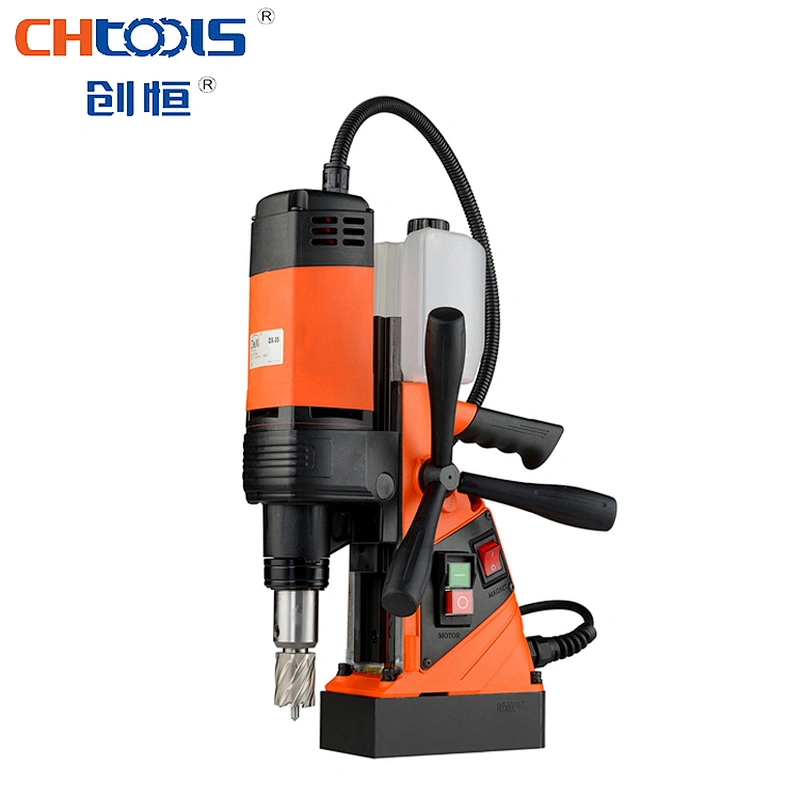

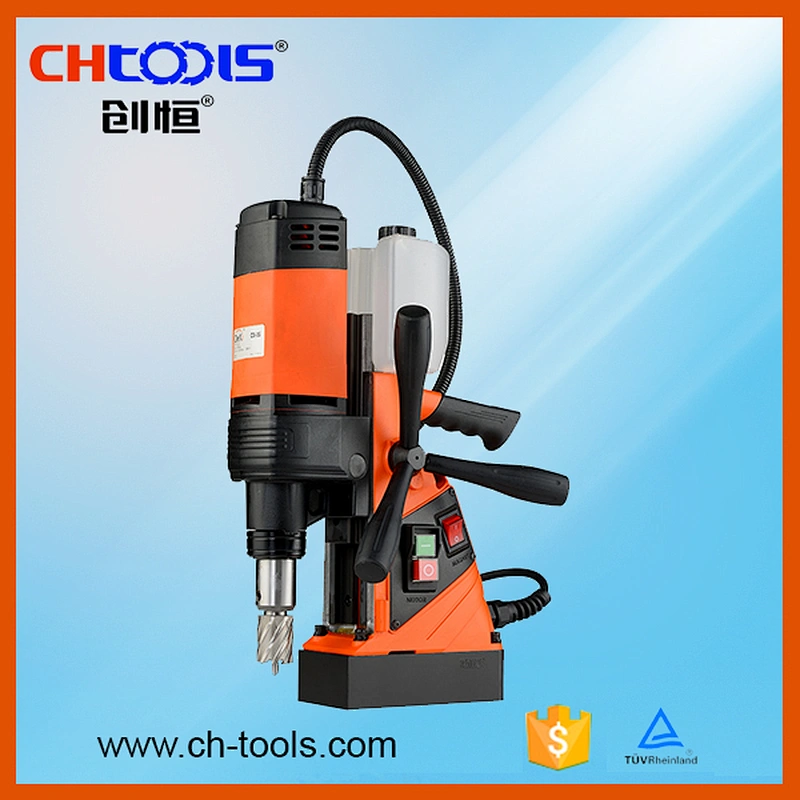

Product Type | DX-35 | DX-50 |
Stroke | 118mm | 170mm |
Magnetic base bize | 167*84*44mm | 210*100*45mm |
Input power | 1100W | 1500W |
The max cutting depth | 50mm (2”) | 75mm |
The max cutter capacity diameter | 35mm (1-3/8”) | 50mm |
Motor can adjust the height to | 210mm | 130mm |
The max diameter of twist drill | 13mm | 32mm |
The min cutter depth | 5mm | 5mm |
Magnetic adhesion | 10000N | 15000N |
The type of shank | 19.05mm (3/4”) | MT3 |
Total weight | 11.0kg | 19kg |
Load speed | 450rpm | 250/450rpm |
Countersunk drilling | 10-35mm | / |
Magnetic drill machine is applicable to steel structure drilling, shipping building, paper making, bridge construction, mechanical equipment installation, steel construct engineering, subway construction, large equipment maintenance and all the pipeline engineering.

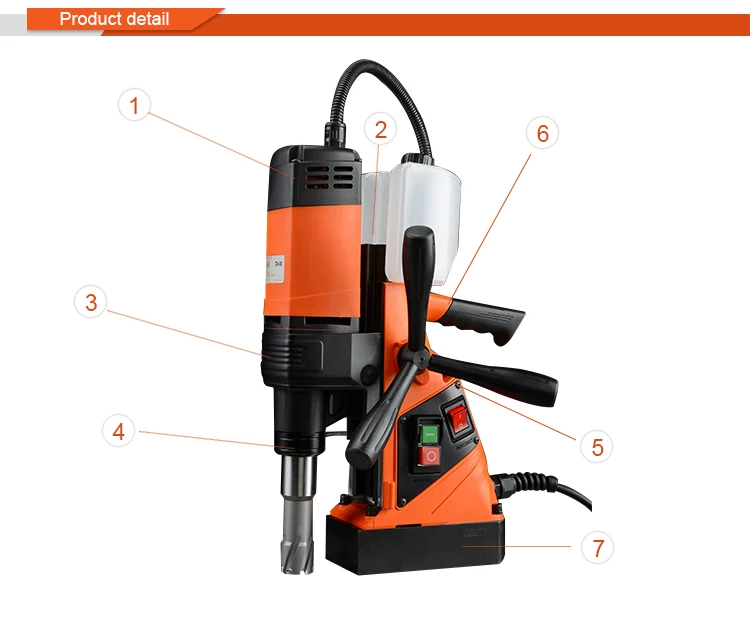

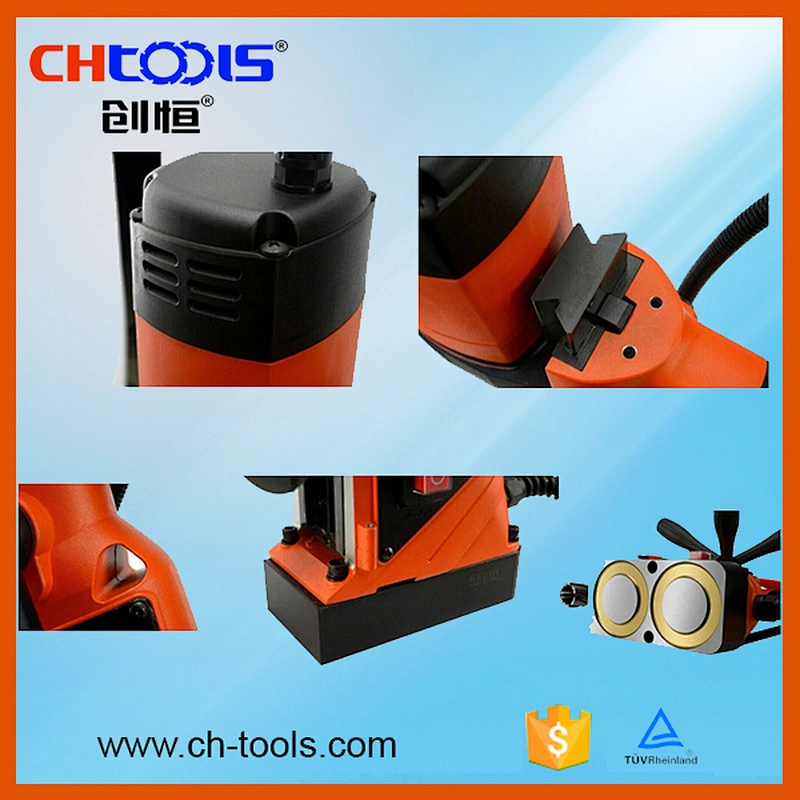

| 1. | Tilt protection design for motor air Inlet avoid liquid or debris falling into the inside of the motor. |
| 2. | Two-way sliding rails: special process of Hard wear-resisting, makes the wear-resisting performance increased more than 2 times, Is the guarantee of lower supplies. Two-way sliding rails, which make the motor height be adjustable according to the different requirement. Stroke up to 210mm. Rail positioning function, which can make the motor stop at any position to prevent self-rig decline and damage cutter. |
| 3. | Design of internal self-lubricating function ensure longer life of gear. |
| 4. | Automatic internal cooling system, external cooling ring design to prevent water overflow into the gear box, the overall design makes the appearance more beautiful. |
| 5. | Design of overall aerial lifting holes and insurance rope holes guarantee double protection for the safety of the aerial personnel and equipment. |
| 6. | Design of overall tilt body ensures its overall rigidity, and improve drilling accuracy. |
| 7. | Magnetic bottom wear design, which delays the wear of magnet bottom and extend service life. Magnetic base with maximum adhesion up to 10000N ensures the safety and reliability during drilling operations. |
Our company established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. We concentrate on innovation, and our R&D department keeps improving existing products and developing new products, to adapt to the demands of customers
In future, we will continue to be an international leading cutting tools manufacturer, to provide you with more effective and excellent service, be a designated cutting tools supplier who you can rely on
1. What do you do?
- Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.
2. Can you do OEM for us?
- OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.
3. Can you help us to do some change about your product?
- Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.
4. Can I get a sample?
- Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.
5. Are you a factory or trading company?
- We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.
6. Where is your company location?
- We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing,Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.
