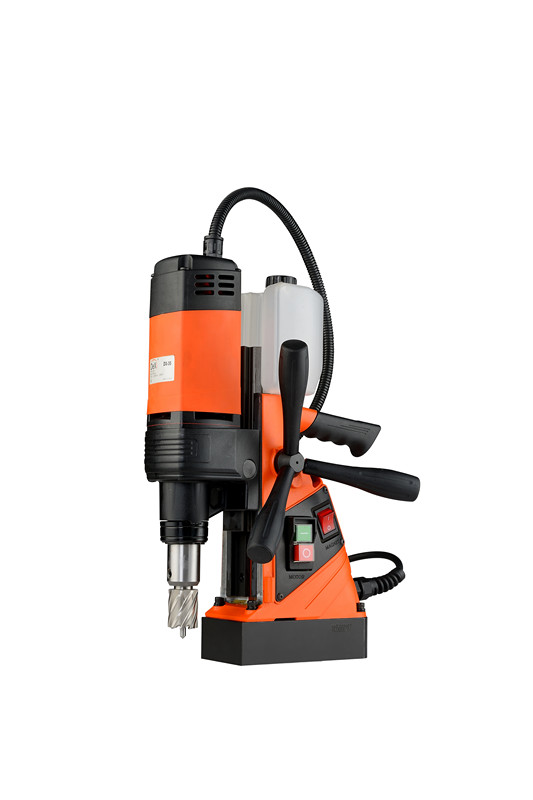

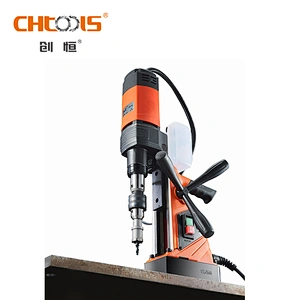

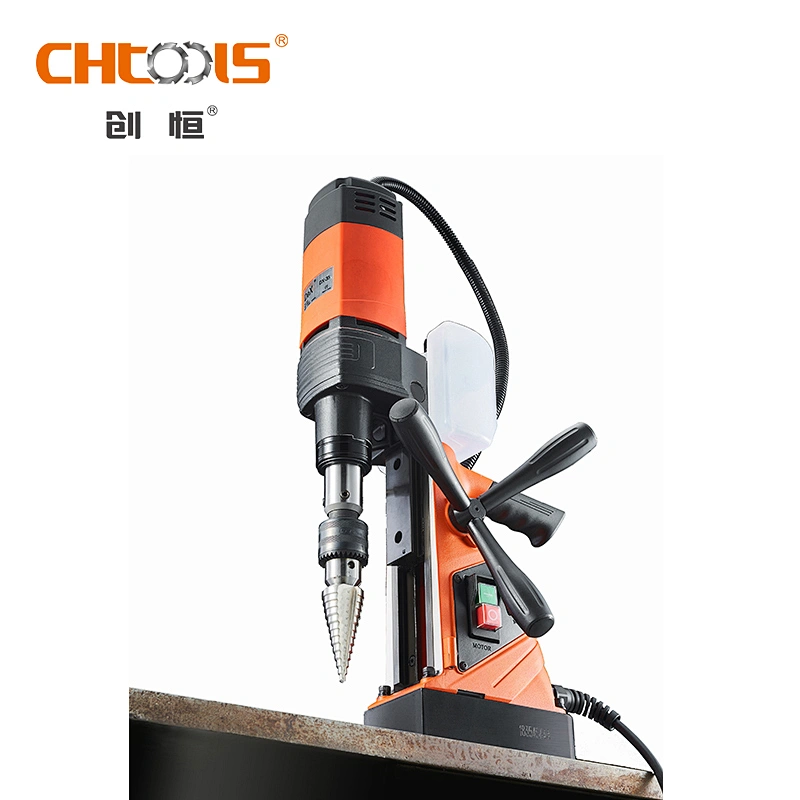

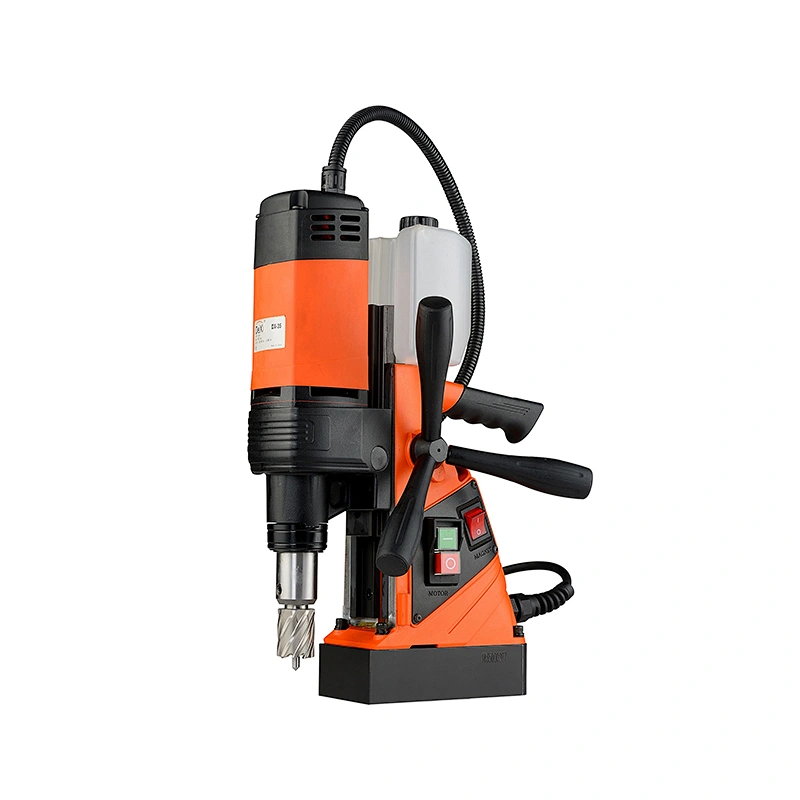

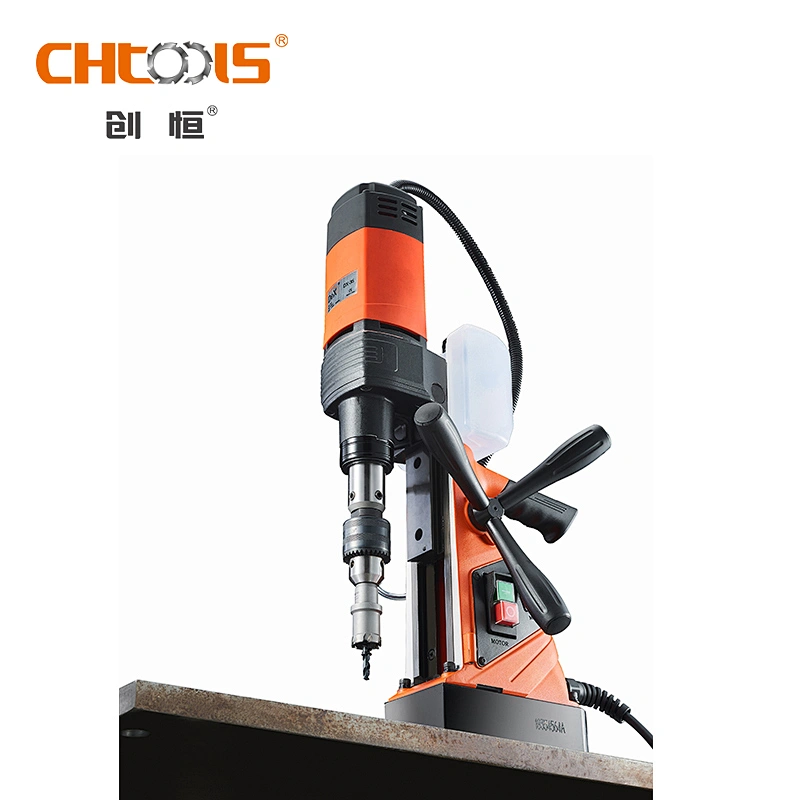

CHTOOLS Easy adjustable magnetic deep hole drilling machine

CHTOOLS Easy adjustable magnetic deep hole drilling machine

Model NO.: DX-35
Price:: US $ 290.00-310.00 / set
Minimum order quantity: 1 set
Supply Ability: 2500.0 set / Month
Country of Origin: NINGBO/SHANGHAI

Quantity:

Product Description
Basic Information

Type:magnetic drill machine
The Max Cutting Depth:50mm(2")
Max. Drilling Dia. (mm):35mm(1-3/8")
The Max Diameter of Twist Drill:13mm
Countersunk Drilling:10-35mm
Magnetic Adhesion:10000N
The Type of Shank:19.05mm
Core size:80*168mm
Stroke:120mm
Power(W):1100W
Condition:New
type:Magnetic drilling machine
CNC or Not:Normal
Warranty:1 Year
After-sales Service Provided:Online support
After-sales Service Provided:Video technical support
Key Selling Points:Energy saving
After Warranty Service:Video technical support
Local Service Location:None
Showroom Location:None
Applicable Industries:Building Material Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Machinery Repair Shops
Applicable Industries:Home Use
Applicable Industries:Retail
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
Marketing Type:Hot Product 2019
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Bearing
Core Components:Engine
Place of Origin:CN;ZHE
Max. Drilling Dia. (mm):35 mm
Range of Spindle Speed(r.p.m):450 - 700 r.p.m
Drilling Speed:450RMP
Brand Name:CHTOOLS
Model Number:DX-35
Voltage:220V
Dimension(L*W*H):305mm*182mm*431mm

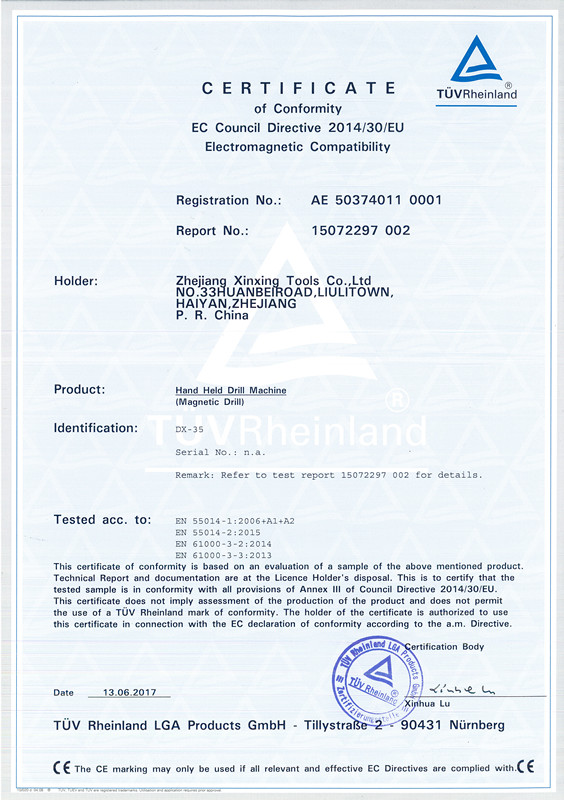

Certification:CE
Power (kW):1.1
Weight (KG):15.4

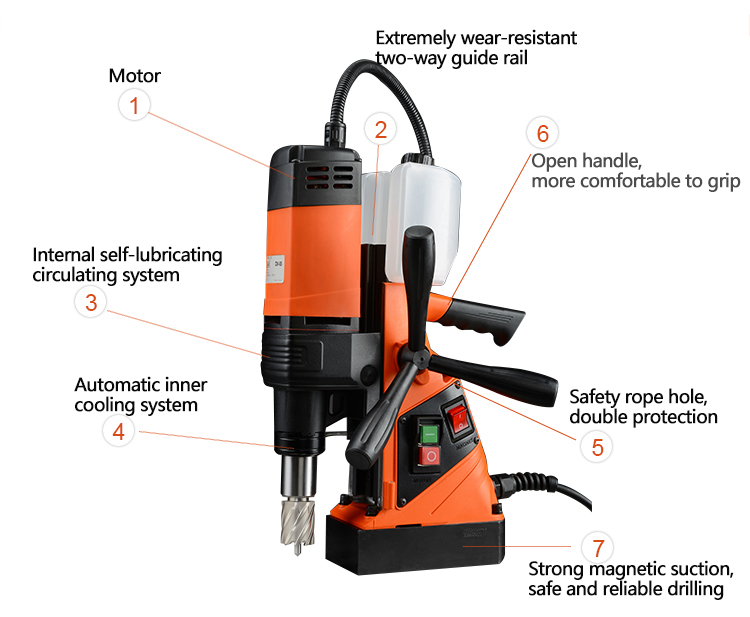

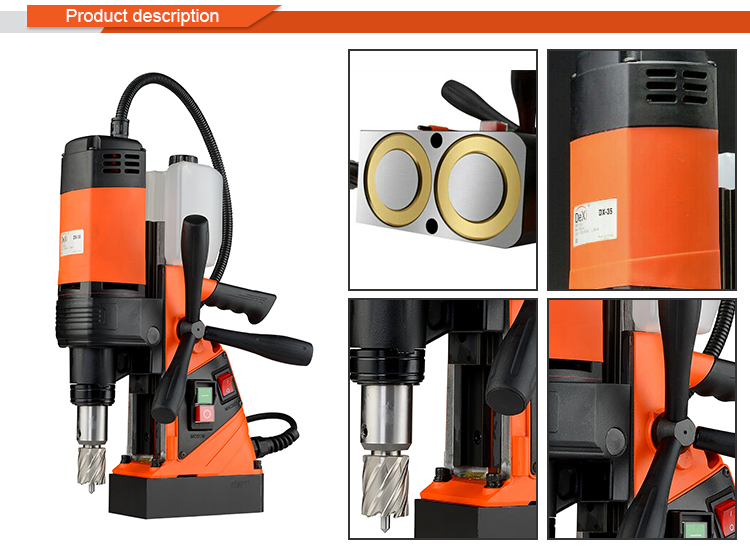

Products Description

Product Type	DX-35
Stroke	120mm
Magnetic base size	167mm84mm44mm
Input power	1100W
The max cutting depth	50mm (2”)
The max cutter capacity diameter	35mm (1-3/8”)
Motor can adjust the height to	95mm
The max diameter of twist drill	13mm ( 1/2")
The min cutter depth	10mm
Magnetic adhesion	10000N
The type of shank	19.05mm (3/4”)
Total weight	11.0kg
Load speed	450rpm

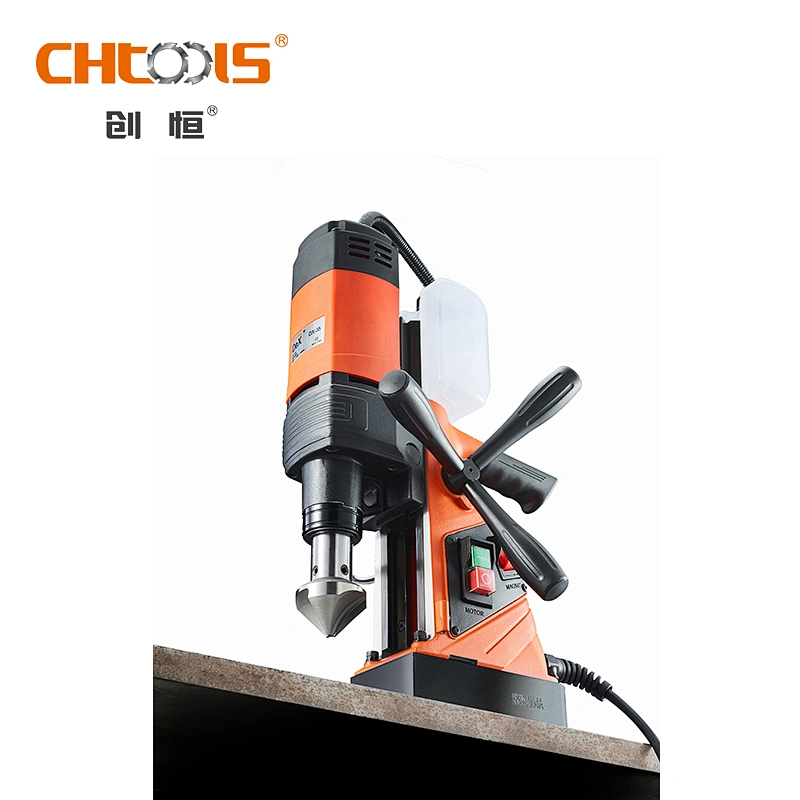

Countersunk drilling	10-35mm

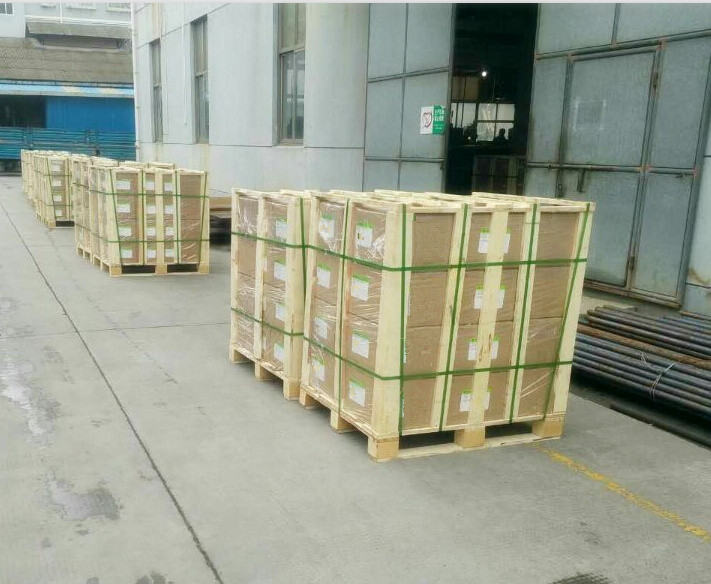

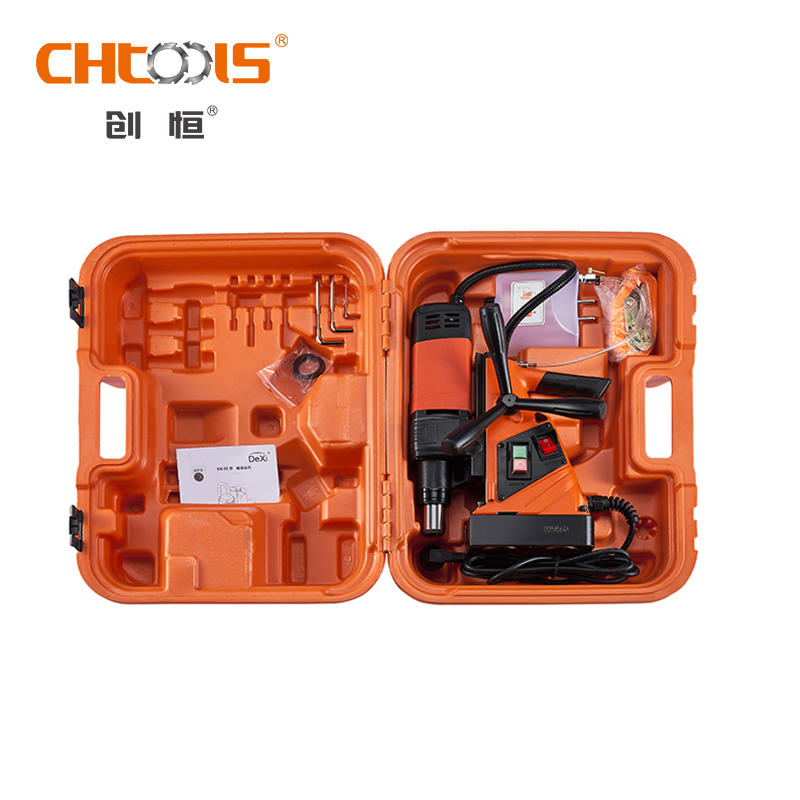

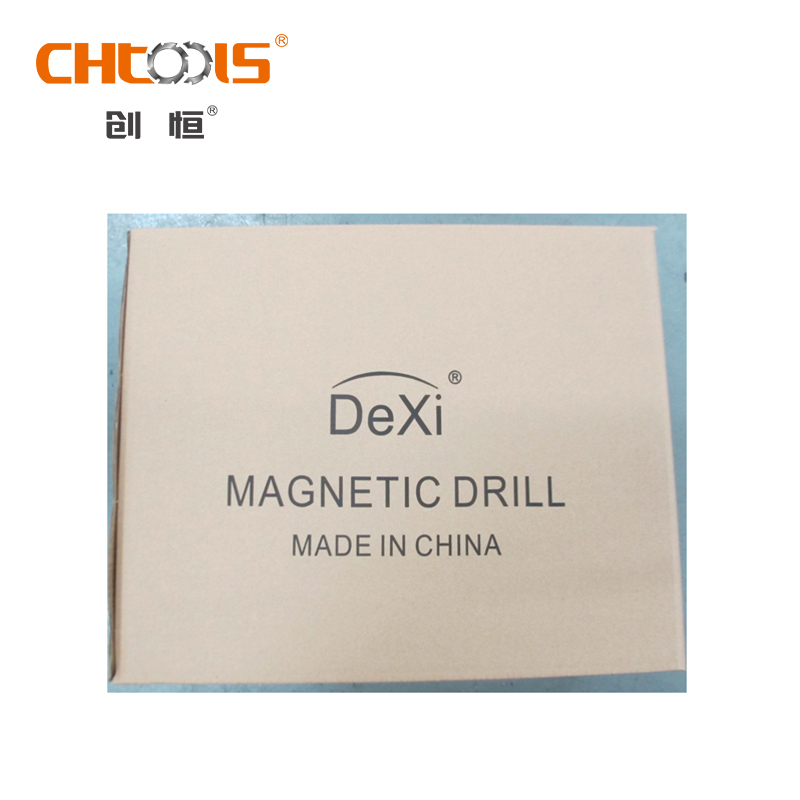

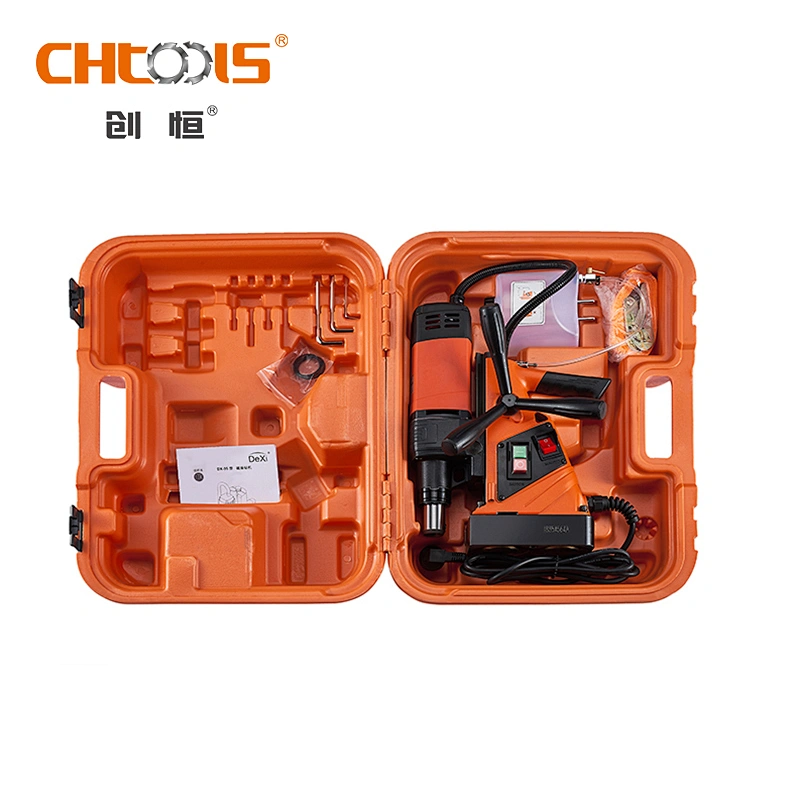

Product packaging

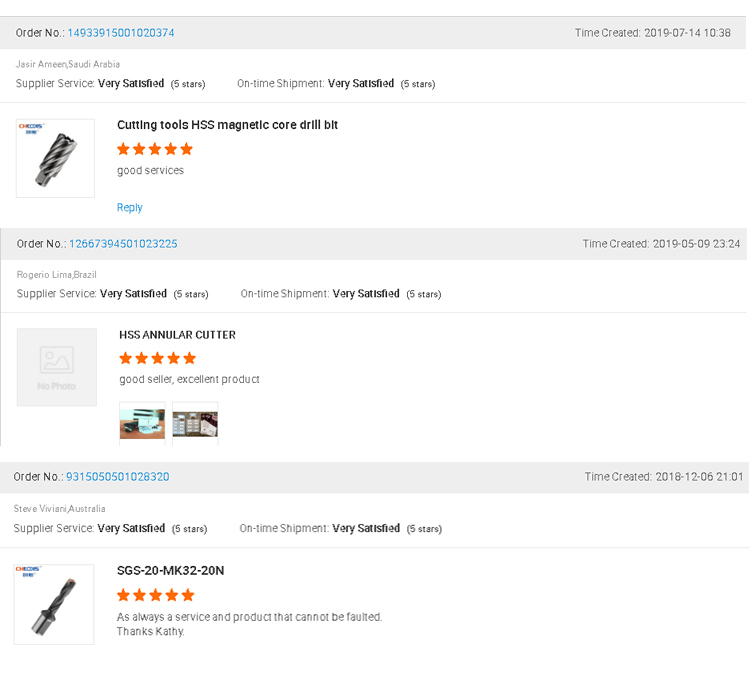

Comment & FAQ

FAQ：

What do you do?

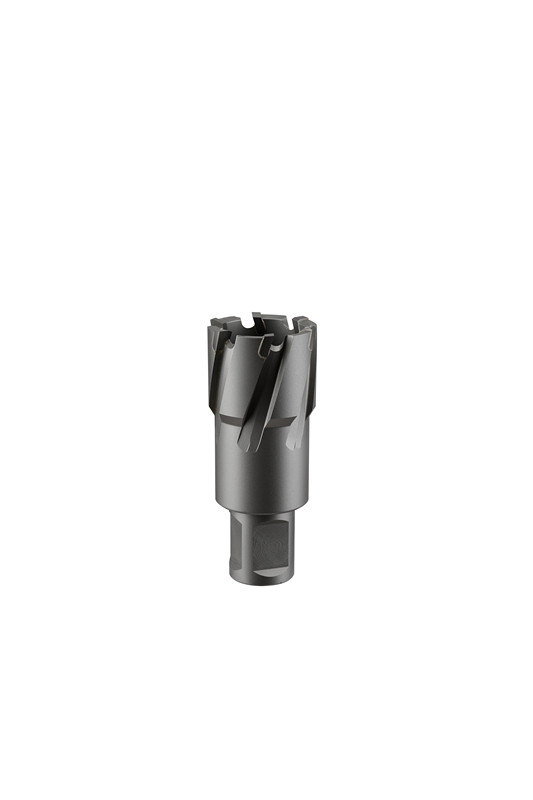

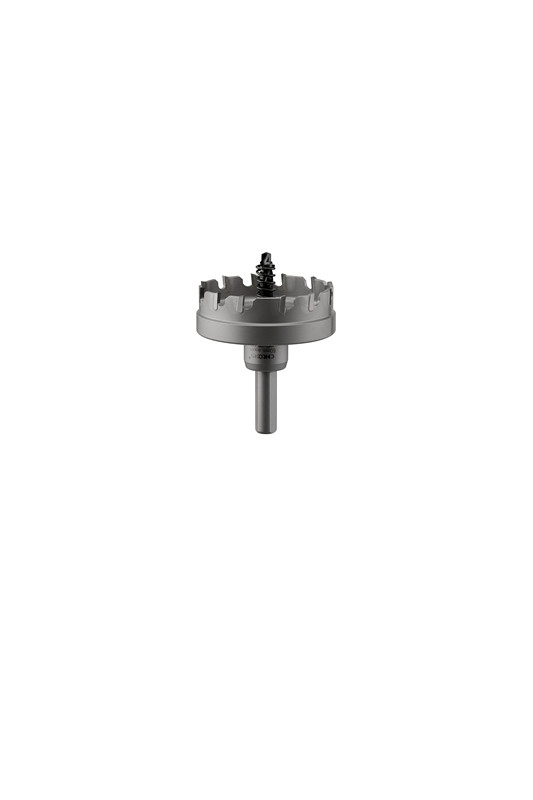

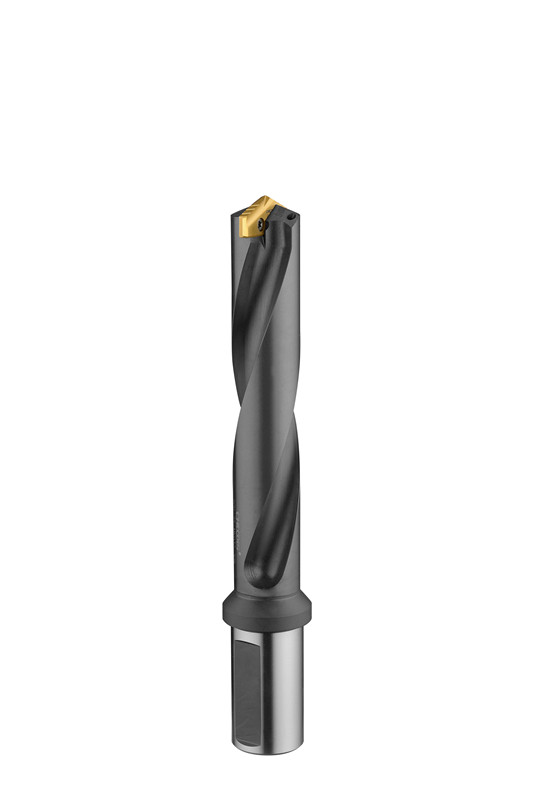

A: Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.

Can you do OEM for us?

A: OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.

Can you help us to do some change about your product?

A: Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.

Can I get a sample?

A: Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.

Are you a factory or trading company?

A: We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.

Where is your company location?

A: We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing, Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.
