- Place of Origin:CN;ZHE
- Type:Core Drill Bit
- Material:High Speed Steel
- Use:Metal Drilling
- Brand Name:CHTOOLS
- Model Number:DNHX-5
Our company produces annular cutters, such as HSS/TCT annular cutters. Except that, we also produce and sell other products, such as rail cutter, hole saw, spade drill, step drill, countersink, solid carbide cutter, magnetic drilling machine, diamond drilling bit and other accessories.

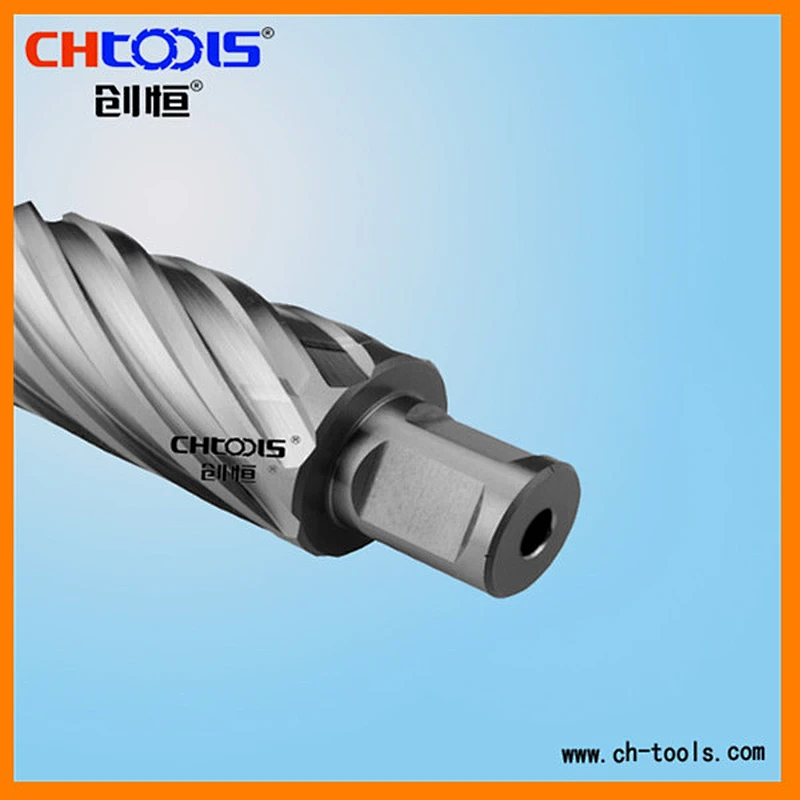

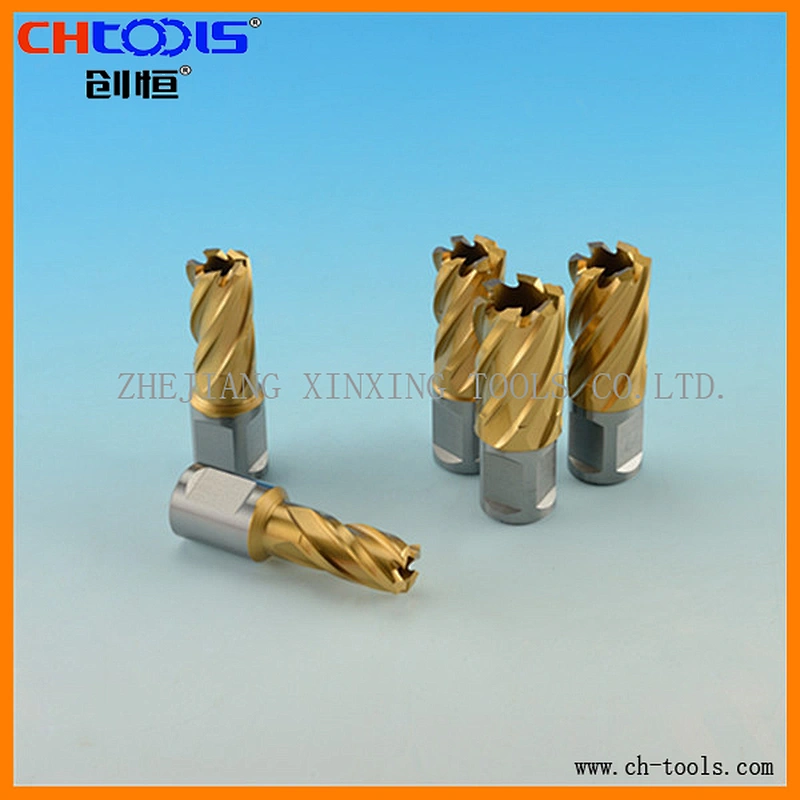

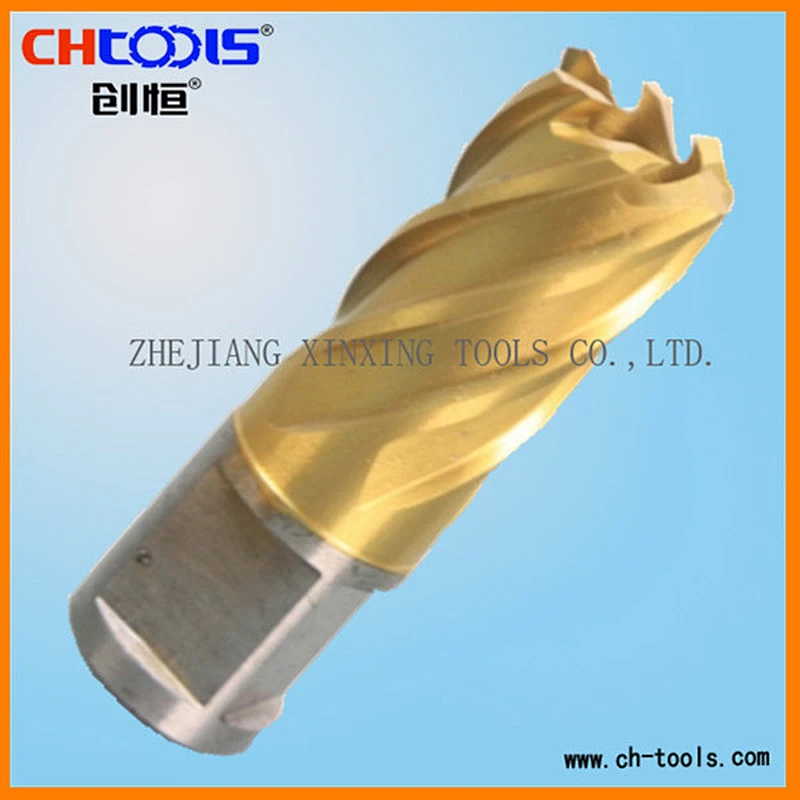

Annular cutter (core drill) introduction:
Annular cutter (also called core drill broach cutter) is high-efficient drilling cutter with Multi-edge. The diameter of the cutter ranges from 12mm-150mm, The product is mainly used to process the drilling hole, such as steel structure project, rail traffic, bridging, shipbuilding, machine manufacture and other hole processing fields. The hole drilling performance of annular cutter is much better than the traditional twist drill. The annular cutter possesses high-efficient drilling performance and labor-saving character. If it is matched with magnetic drill machine, multi-edge annular cutter is widely used in magnetic drill machine, drilling machine, CNC drilling machine and other machines, to achieve high efficiency drilling and shorten manufacturing period efficiently. The annular cutter is a very efficient tool for modern steel structural component drilling and circular groove processing.
Main characteristics of annular cutter (core drill):
1.Annular cutting, improving efficiency for multiple times than general twist drill;

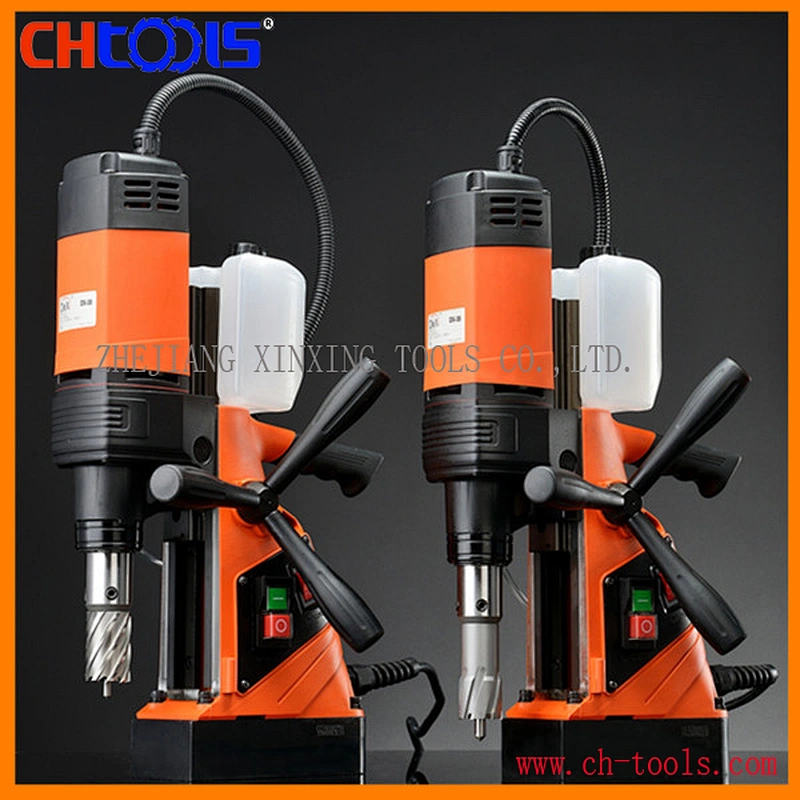

2.When matching magnetic drill machine, it could conduct multi-direction drilling from front, side and top of the processed workpiece, and the drilling will not be restrained by auxiliary equipment, it is portable and convenient;
3. The cutting power is 80% of twist drill. For example, radial drilling machine,the normal drilling of twist drill is 80mm in diameter, but for annular cutter is 200mm in diameter .
| Type | Size | Type | Size |
| DNHX-50180 | 18*75 | DNHX-E0687 | 11/16"*3" |
| DNHX-50190 | 19*75 | DNHX-E0750 | 3/4"*3" |
| DNHX-50200 | 20*75 | DNHX-E0812 | 13/16"*3" |
| DNHX-50210 | 21*75 | DNHX-E0875 | 7/8"*3" |
| DNHX-50220 | 22*75 | DNHX-E0937 | 15/16"*3" |
| DNHX-50230 | 23*75 | DNHX-E1000 | 1"*3" |
| DNHX-50240 | 24*75 | DNHX-E1062 | 1-1/16"*3" |
| DNHX-50250 | 25*75 | DNHX-E1125 | 1-1/8"*3" |
| DNHX-50260 | 26*75 | DNHX-E1187 | 1-3/16"*3" |
| DNHX-50270 | 27*75 | DNHX-E1250 | 1-1/4"*3" |
| DNHX-50280 | 28*75 | DNHX-E1312 | 1-5/16"*3" |
| DNHX-50290 | 29*75 | DNHX-E1375 | 1-3/8"*3" |
| DNHX-50300 | 30*75 | DNHX-E1437 | 1-7/16"*3" |
| DNHX-50310 | 31*75 | DNHX-E1500 | 1-1/2"*3" |
| DNHX-50320 | 32*75 | DNHX-E1562 | 1-9/16"*3" |
| DNHX-50330 | 33*75 | DNHX-E1625 | 1-5/8"*3" |
| DNHX-50340 | 34*75 | DNHX-E1687 | 1-11/16"*3" |
| DNHX-50350 | 35*75 | DNHX-E1750 | 1-3/4"*3" |
| DNHX-50360 | 36*75 | DNHX-E1812 | 1-13/16"*3" |
| DNHX-50370 | 37*75 | DNHX-E1875 | 1-7/8"*3" |
| DNHX-50380 | 38*75 | DNHX-E1937 | 1-15/16"*3" |
| ...... | ...... | DNHX-E2000 | 2"*3" |
| DNHX-50420 | 42*75 | ||
| DNHX-50430 | 43*75 | ||
| DNHX-50440 | 44*75 | ||
| DNHX-50450 | 45*75 | ||
| DNHX-50460 | 46*75 | ||
| DNHX-50470 | 47*75 | ||
| DNHX-50480 | 48*75 | ||
| DNHX-50490 | 49*75 | ||
| DNHX-50500 | 50*75 | |
1. What do you do?
- Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.
2. Can you do OEM for us?
- OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.
3. Can you help us to do some change about your product?
- Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.
4. Can I get a sample?
- Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.
5. Are you a factory or trading company?
- We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.
6. Where is your company location?
- We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing,Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.
Welcome to visit our company!
