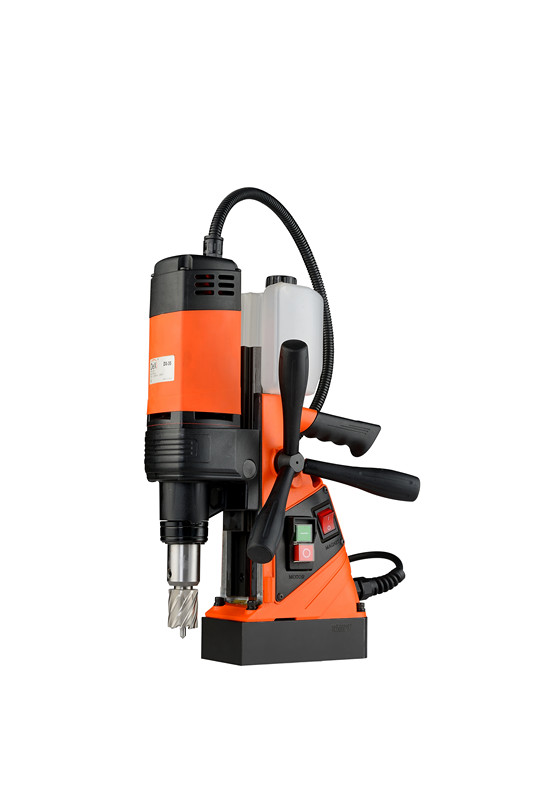

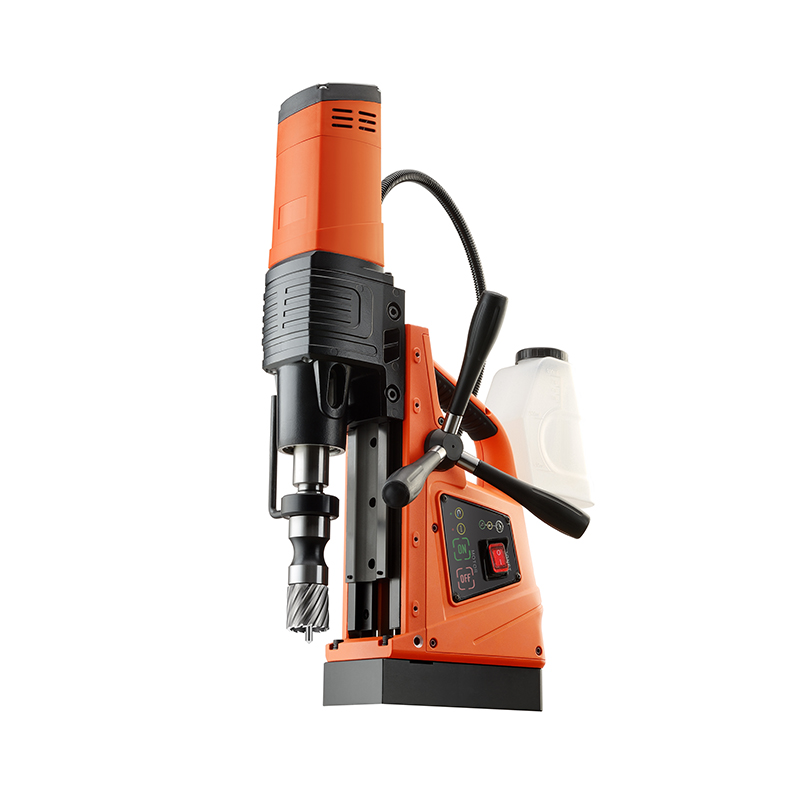

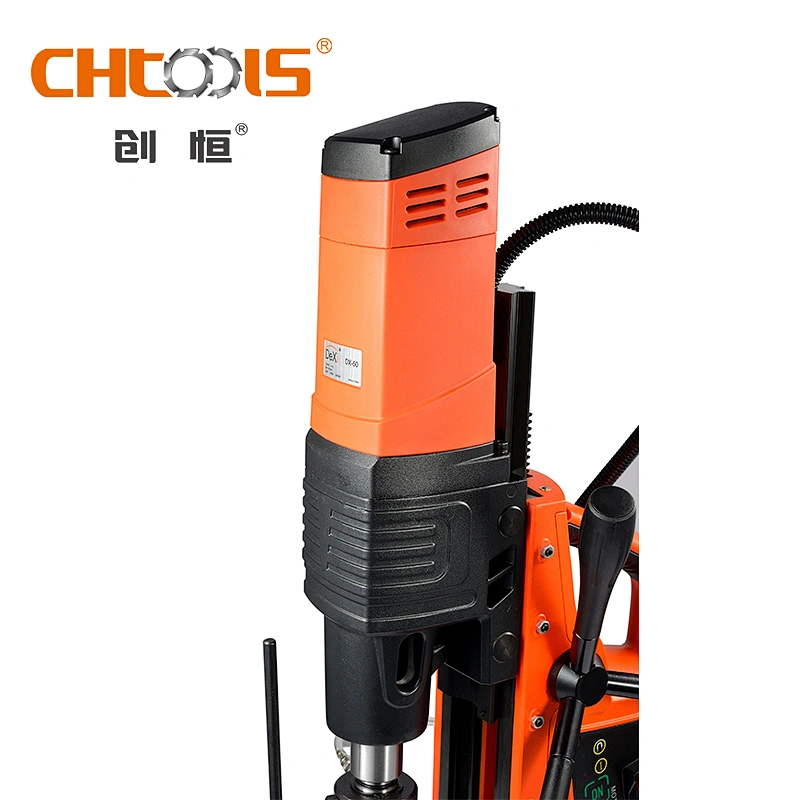

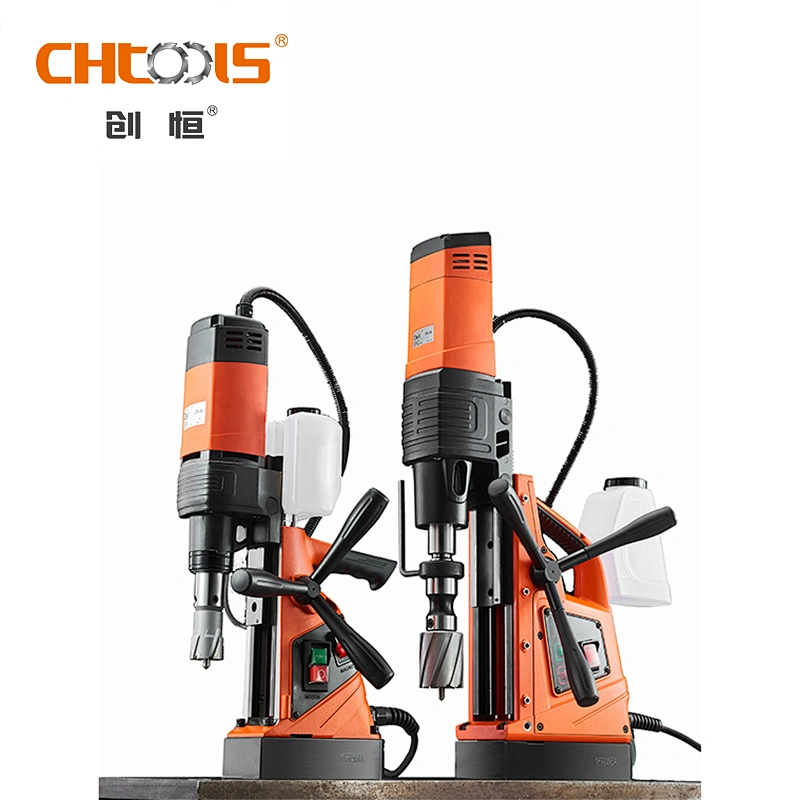

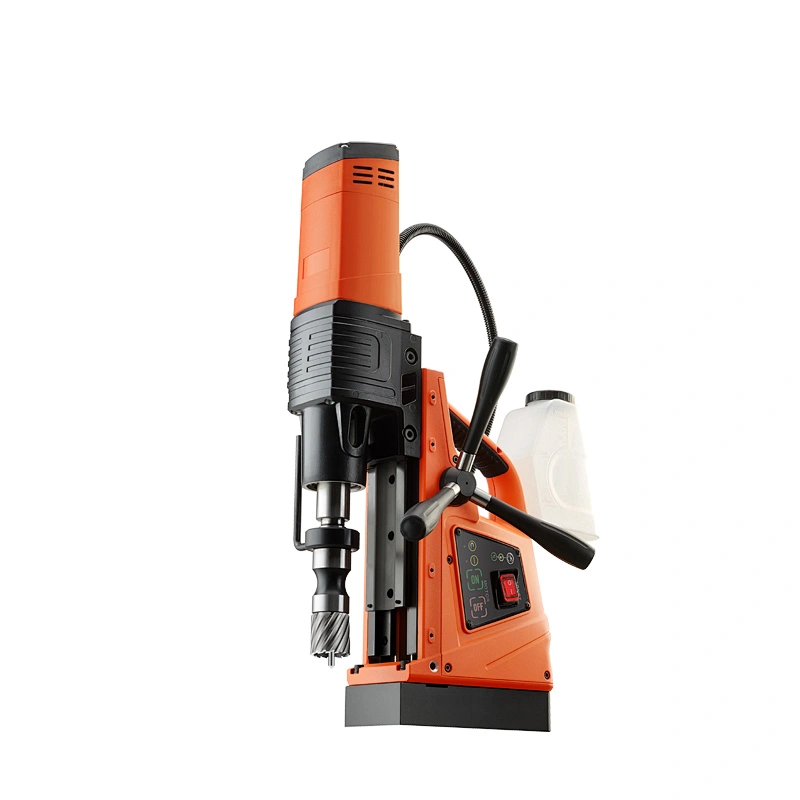

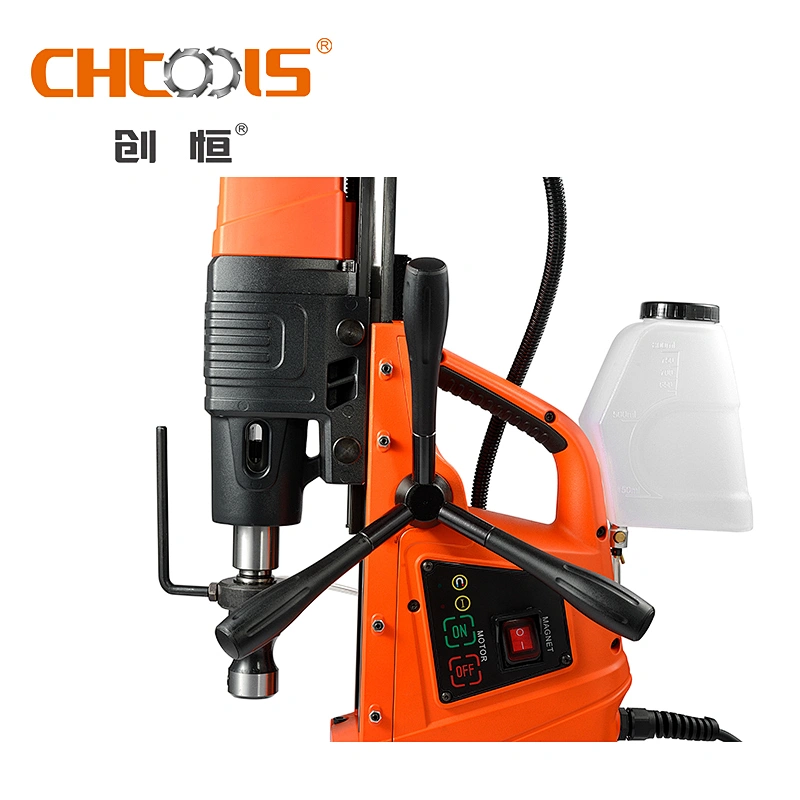

CHTOOLS DX-50 Portable Magnetic Drill Press: 2-Speed, MT3, Drills up to 2

CHTOOLS DX-50 Portable Magnetic Drill Press: 2-Speed, MT3, Drills up to 2" Diameter, up to 3" Depth of Cut

Model NO.: DX-50

Quantity:

Product Description

Keyword:Magnetic Drill Press
Type:75mm magnetic drill

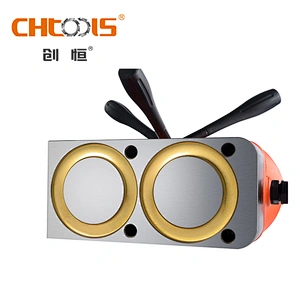

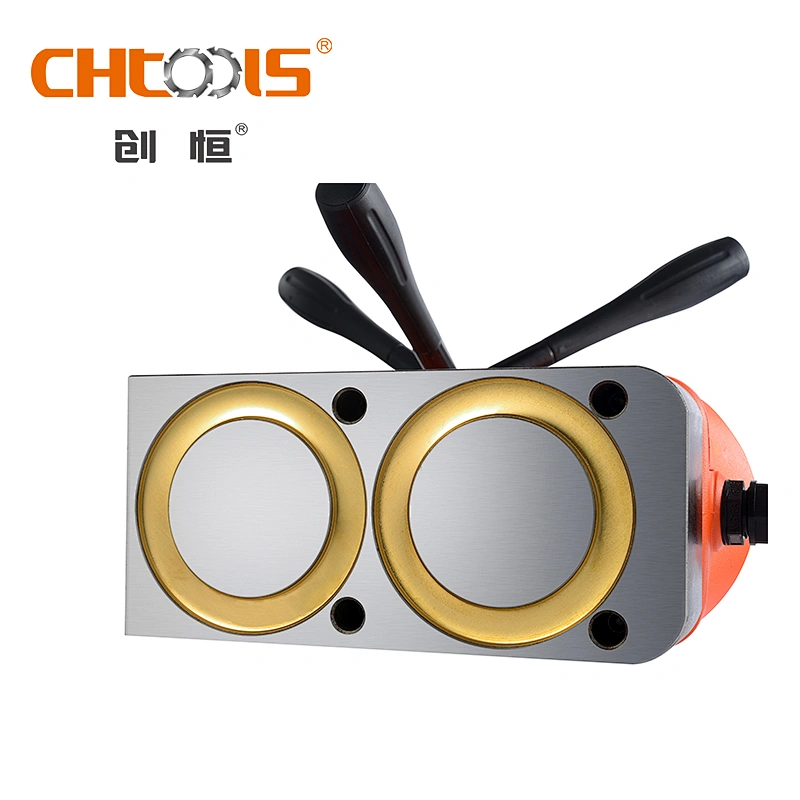

Magnetic base size:210*100*45mm
The max cutting depth:75 mm(3")
Max. Drilling Dia. (mm):50 mm
Motor can adjust the height to:130 mm
The max diameter of twist drill:31.5mm
The min cutter depth:10mm
Magnetic adhesion:15000N
Condition:New
type:Drilling & Milling Machine
CNC or Not:Normal
Warranty:1 Year
After-sales Service Provided:Online support
After-sales Service Provided:Video technical support
Key Selling Points:Energy saving
After Warranty Service:Video technical support
After Warranty Service:Online support
Local Service Location:None
Showroom Location:None
Marketing Type:Hot Product 2019
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:3 months
Core Components:Motor
Place of Origin:CN;ZHE
Max. Drilling Dia. (mm):50
Range of Spindle Speed(r.p.m):250 - 600 r.p.m
Drilling Speed:250/450rpm
Brand Name:CHTOOLS
Model Number:DX-50
Voltage:220V
Dimension(L*W*H):55*22*45cm
Certification:CE
Power (kW):1.5
Weight (KG):25.4
Applicable Industries:Building Material Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Machinery Repair Shops
Applicable Industries:Home Use
Applicable Industries:Retail
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
Applicable Industries:Steel structure engineering

Products Description

Product Type	DX-50
Motor rated power	1500W
Load speed	250/450rpm
Tool holder	MT3
Magnetic adhesion	15000N
The max cutter capacity	60mm
The max cutting depth	75mm ( 3")
The max diameter of twist drill	31.5mm ( 1-1/4")
The min cutter depth	10mm
Stroke	170mm
Motor can adjust the height to	130mm
Magnetic drill machine dimension	375mm230mm450mm
Magnetic base size	21010045mm
Total weight	25.4KG

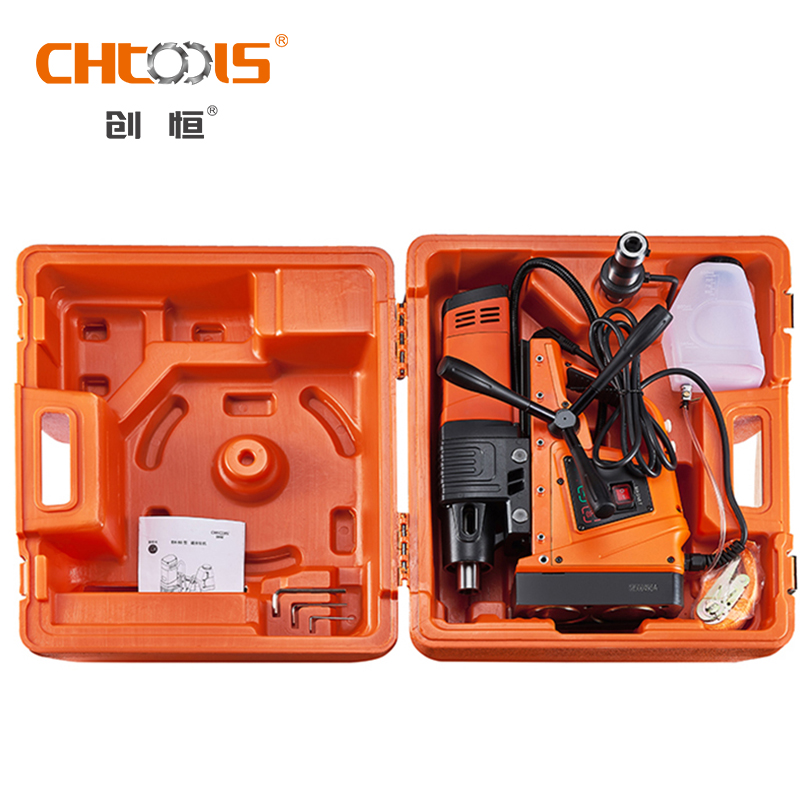

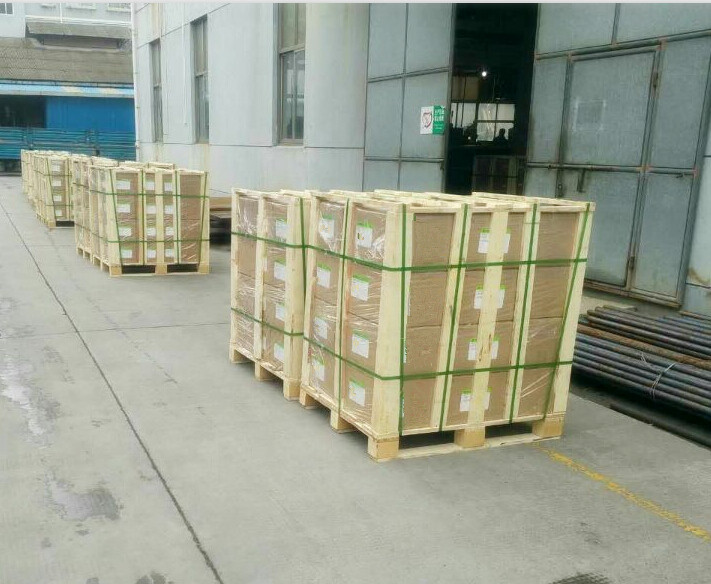

Product packaging

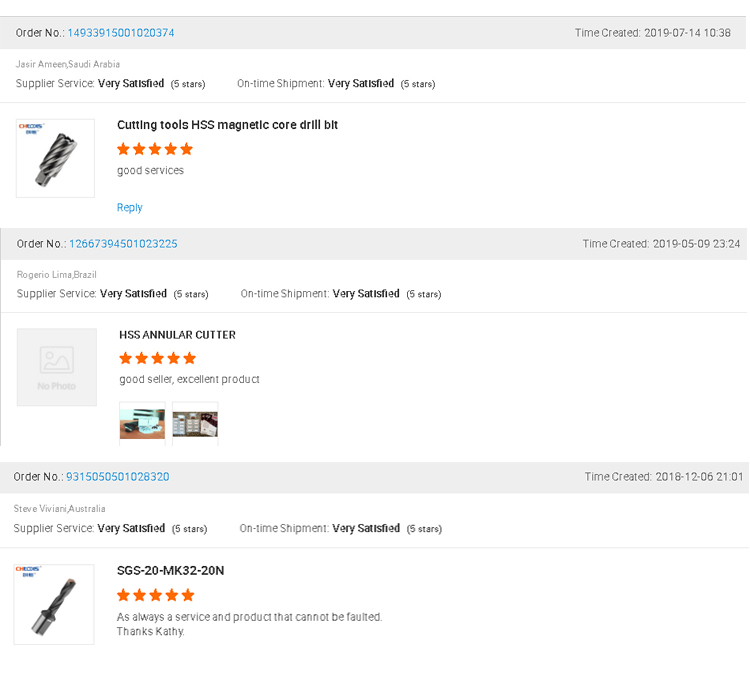

Comment & FAQ

FAQ：

What do you do?

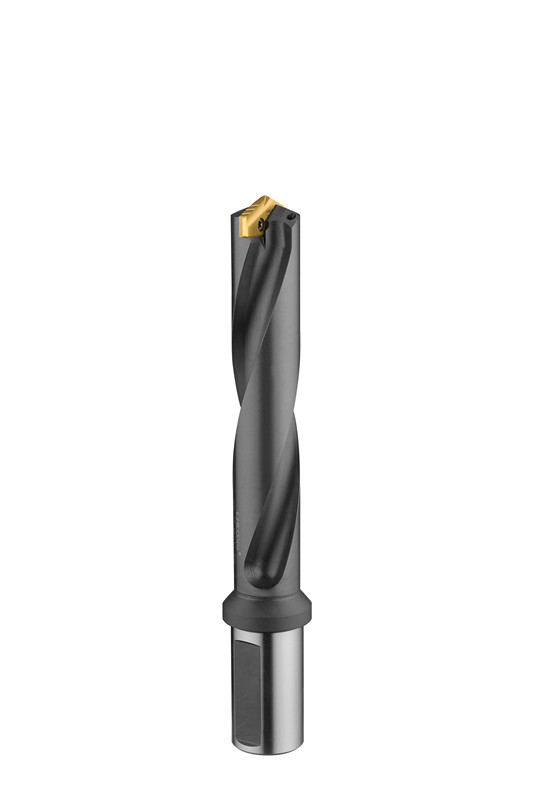

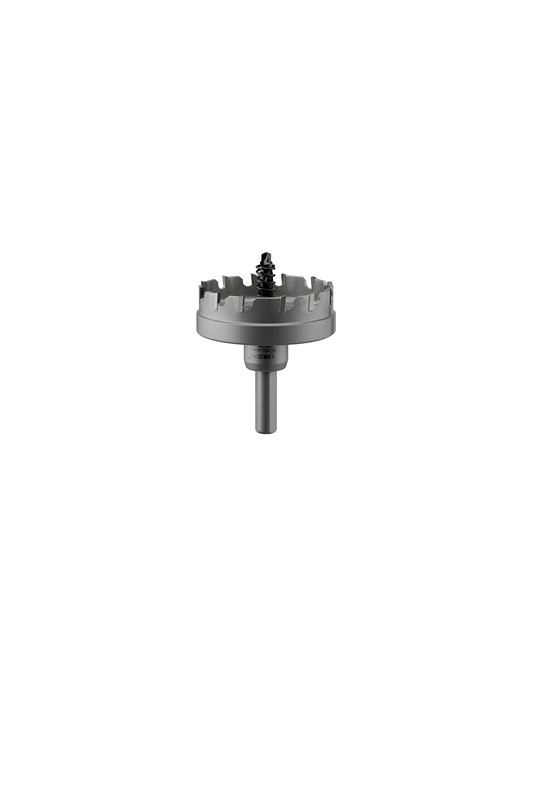

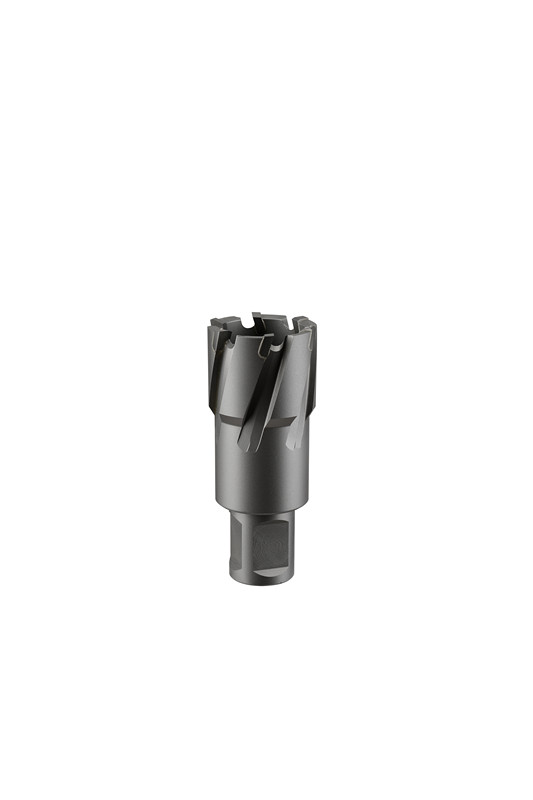

A: Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.

Can you do OEM for us?

A: OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.

Can you help us to do some change about your product?

A: Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.

Can I get a sample?

A: Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.

Are you a factory or trading company?

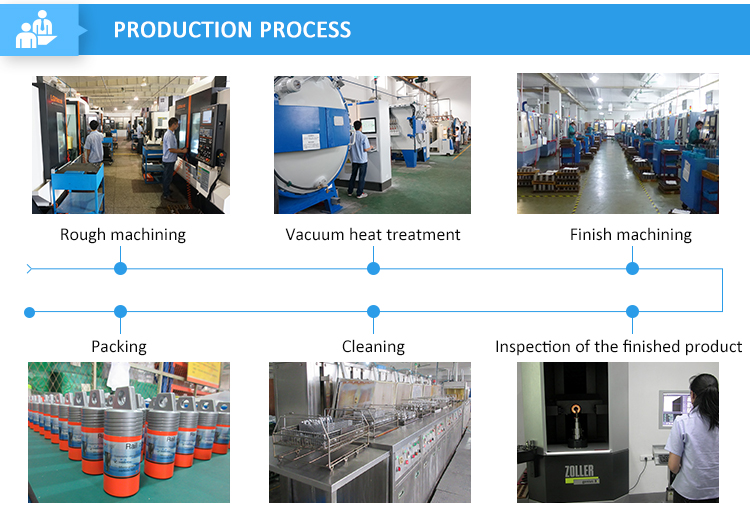

A: We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.

Where is your company location?

A: We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing, Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.
